Media Mix Model calibration is useless without causal knowledge

Introduction

Imagine you just shipped a shiny new Bayesian Media-Mix Model (MMM) that perfectly back-fits years of marketing data. A/B-lift experiments then tell you channel-A is worth €2.7 M, but your model insists it is worth €7 M. “Easy fix,” you think: calibrate the MMM with the lift tests—add an extra likelihood term, rerun, publish.

Yet the calibrated model still over/under-values the channel based on the experimental evidence. Looks like it can’t reconcile the experimental evidence with the data, and adding new calibration for other channels actually makes it worse.

That is the calibration trap: without causal structure the posterior can’t happily reconcile observations and clean experiments at the same time.

In this article we will build a PyMC MMM, add lift-test calibration, and then show—step-by-step—why calibration alone cannot save a misspecified causal story.

---

Why marketers love calibration

• Ground-truth anchor. Lift tests are randomised, so their incremental effects are (almost) unbiased.

• Sample-size boost. MMMs see every day and every channel; experiments see only a slice. Combining them promises lower variance.

• Storytelling power. “Our model matches the experiments” is an executive-friendly sound-bite.

Calibration therefore feels like catching two Bayesian birds with one conjugate stone.

---

What is calibration—mathematically?

For each experiment \(i\) the model predicts a lift

\[ \widehat{\Delta y_i}(\theta)\;=\; s\bigl(x_i+\Delta x_i;\,\theta_{c(i)}\bigr) \;-\; s\bigl(x_i;\,\theta_{c(i)}\bigr), \]

where

• \(x_i\) – baseline spend before the experiment,

• \(\Delta x_i\) – change in spend during the experiment,

• \(s(\cdot;\theta_{c(i)})\) – saturation curve for the channel that experiment \(i\) targets,

• \(\theta\) – all saturation-curve parameters,

• \(\widehat{\Delta y_i}(\theta)\) – model-predicted incremental outcome.

We then attach the observed lift \(\Delta y_i\) and its error \(\sigma_i\) through an additional likelihood

\[ p\!\bigl(\Delta y_i \mid \theta\bigr)\;=\; \operatorname{Gamma}\!\bigl( \mu=\lvert\widehat{\Delta y_i}(\theta)\rvert,\; \sigma=\sigma_i \bigr), \]

where

• \(\Delta y_i\) – experimentally measured incremental outcome,

• \(\sigma_i\) – reported standard error of \(\Delta y_i\),

• \(\mu\) – mean parameter set to the absolute predicted lift so the Gamma remains non-negative.

Stacking all \(n_{\text{lift}}\) experiments gives the calibrated posterior

\[ p\!\bigl(\theta \mid \mathbf y,\mathcal L\bigr) \;\propto\; p\!\bigl(\mathbf y \mid \theta\bigr)\; \prod_{i=1}^{n_{\text{lift}}} p\!\bigl(\Delta y_i \mid \theta\bigr)\; p(\theta), \]

where

• \(\mathbf y\) – full time-series of observed outcomes (sales, sign-ups …),

• \(\mathcal L\) – the collection of lift-test observations \((\Delta y_i,\sigma_i)\),

• \(p(\theta)\) – priors for all parameters.

PyMC turns this into a three-liner:

add_lift_measurements_to_likelihood_from_saturation(
    model=mmm,
    df_lift=df_lifts,     # experiment data-frame
    dist=pm.Gamma,
)

In simple terms, calibration appends one extra likelihood per experiment: for lift i we run the channel’s saturation curve at the pre-spend and post-spend levels, subtract the two, and call that result the model-expected incremental response for experiment i (a deterministic function of the saturation parameter vector \(\theta\)). We then treat the observed lift \(\Delta y_i\) as a Gamma-distributed draw whose mean is the absolute value of that model-expected increment and whose dispersion is the experiment’s reported standard error \(\sigma_i\).

These independent \(\Gamma(\mu = |\text{model-expected increment}|, \sigma = \sigma_i)\) factors multiply into the original time-series likelihood, yielding a posterior where \(\theta\) is pulled toward values that keep every model-expected increment within the experimental noise band. In effect, each lift test imposes a Bayesian anchor that penalises any parameter setting whose predicted causal effect disagrees with ground-truth, while still allowing the full sales history to inform the remaining uncertainty.

Let’s see how this works in practice, by creating a synthetic dataset and fitting a simple MMM.

Getting started

We’ll use Pytensor to run our data-generation-process (DGP). Let’s set the seed for reproducibility, and define the number of observations, and finally add some default configurations for the notebook.

import warnings
import pymc as pm
import arviz as az
import pytensor.tensor as pt
from pytensor.graph import rewrite_graph
import preliz as pz

import numpy as np
import pandas as pd

import matplotlib.pyplot as plt
import seaborn as sns
import graphviz

from pymc_marketing.mmm import GeometricAdstock, MichaelisMentenSaturation, MMM
from pymc_marketing.prior import Prior

SEED = 42
n_observations = 1050

warnings.filterwarnings("ignore")

# Set the style
az.style.use("arviz-darkgrid")
plt.rcParams["figure.figsize"] = [8, 4]
plt.rcParams["figure.dpi"] = 100
plt.rcParams["axes.labelsize"] = 6
plt.rcParams["xtick.labelsize"] = 6
plt.rcParams["ytick.labelsize"] = 6

%config InlineBackend.figure_format = "retina"

Now, we can define the date range.

min_date = pd.to_datetime("2022-01-01")
max_date = min_date + pd.Timedelta(days=n_observations)

date_range = pd.date_range(start=min_date, end=max_date, freq="D")

df = pd.DataFrame(data={"date_week": date_range}).assign(
    year=lambda x: x["date_week"].dt.year,
    month=lambda x: x["date_week"].dt.month,
    dayofyear=lambda x: x["date_week"].dt.dayofyear,
)

We can start by creating the spend vectors for each channel. These are the will define later the amount of impressions or exposition we get from each channel, which by the end will transform into sales.

spend_x1 = pt.vector("spend_x1")
spend_x2 = pt.vector("spend_x2")
spend_x3 = pt.vector("spend_x3")
spend_x4 = pt.vector("spend_x4")

# Create sample inputs for demonstration using preliz distributions:
pz_spend_x1 = np.convolve(
    pz.Gamma(mu=.8, sigma=.3).rvs(size=n_observations, random_state=SEED),
    np.ones(14) / 14, mode="same"
)
pz_spend_x1[:14] = pz_spend_x1.mean()
pz_spend_x1[-14:] = pz_spend_x1.mean()

pz_spend_x2 = np.convolve(
    pz.Gamma(mu=.6, sigma=.4).rvs(size=n_observations, random_state=SEED),
    np.ones(14) / 14, mode="same"
)
pz_spend_x2[:14] = pz_spend_x2.mean()
pz_spend_x2[-14:] = pz_spend_x2.mean()

pz_spend_x3 = np.convolve(
    pz.Gamma(mu=.2, sigma=.2).rvs(size=n_observations, random_state=SEED),
    np.ones(14) / 14, mode="same"
)
pz_spend_x3[:14] = pz_spend_x3.mean()
pz_spend_x3[-14:] = pz_spend_x3.mean()

pz_spend_x4 = np.convolve(
    pz.Gamma(mu=.1, sigma=.03).rvs(size=n_observations, random_state=SEED),
    np.ones(14) / 14, mode="same"
)
pz_spend_x4[:14] = pz_spend_x4.mean()
pz_spend_x4[-14:] = pz_spend_x4.mean()

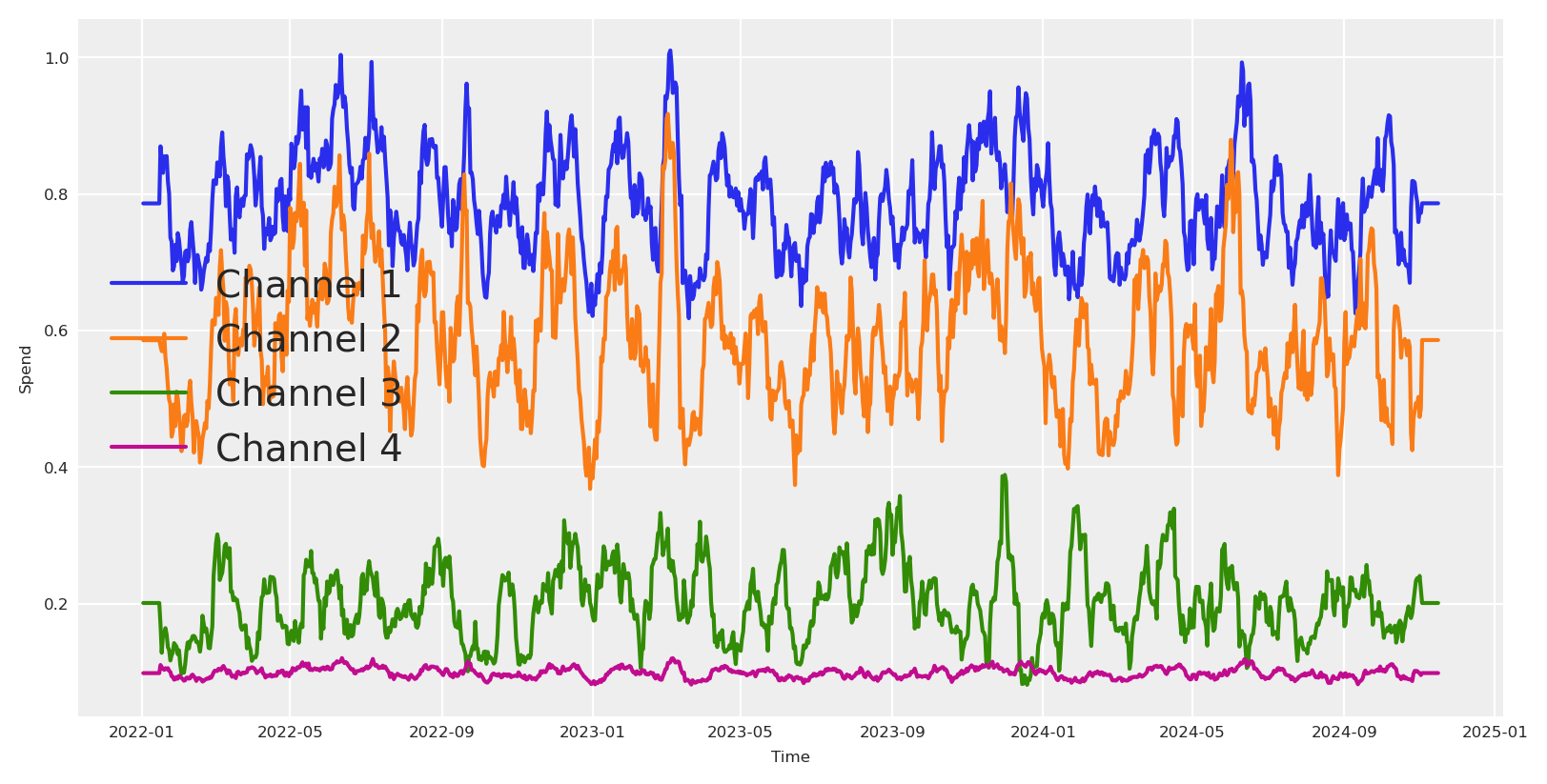

fig, ax = plt.subplots()
ax.plot(date_range[1:], pz_spend_x1, label='Channel 1')
ax.plot(date_range[1:], pz_spend_x2, label='Channel 2')
ax.plot(date_range[1:], pz_spend_x3, label='Channel 3')
ax.plot(date_range[1:], pz_spend_x4, label='Channel 4')
ax.set_xlabel('Time')
ax.set_ylabel('Spend')
ax.legend()
plt.show()

Using the same logic we can create other components such as trend, noise, seasonality, and certain events.

## Trend
trend = pt.vector("trend")
# Create a sample input for the trend
np_trend = (np.linspace(start=0.0, stop=.50, num=n_observations) + .10) ** (.1 / .4)

## NOISE
global_noise = pt.vector("global_noise")
# Create a sample input for the noise
pz_global_noise = pz.Normal(mu=0, sigma=.005).rvs(size=n_observations, random_state=SEED)

# EVENTS EFFECT
pt_event_signal = pt.vector("event_signal")
pt_event_contributions = pt.vector("event_contributions")

event_dates = ["24-12", "09-07"]  # List of events as month-day strings
std_devs = [25, 15]  # List of standard deviations for each event
events_coefficients = [.094, .018]

signals_independent = []

# Initialize the event effect array
event_signal = np.zeros(len(date_range))
event_contributions = np.zeros(len(date_range))

# Generate event signals
for event, std_dev, event_coef in zip(
    event_dates, std_devs, events_coefficients, strict=False
):
    # Find all occurrences of the event in the date range
    event_occurrences = date_range[date_range.strftime("%d-%m") == event]

    for occurrence in event_occurrences:
        # Calculate the time difference in days
        time_diff = (date_range - occurrence).days

        # Generate the Gaussian basis for the event
        _event_signal = np.exp(-0.5 * (time_diff / std_dev) ** 2)

        # Add the event signal to the event effect
        signals_independent.append(_event_signal)
        event_signal += _event_signal

        event_contributions += _event_signal * event_coef

np_event_signal = event_signal
np_event_contributions = event_contributions

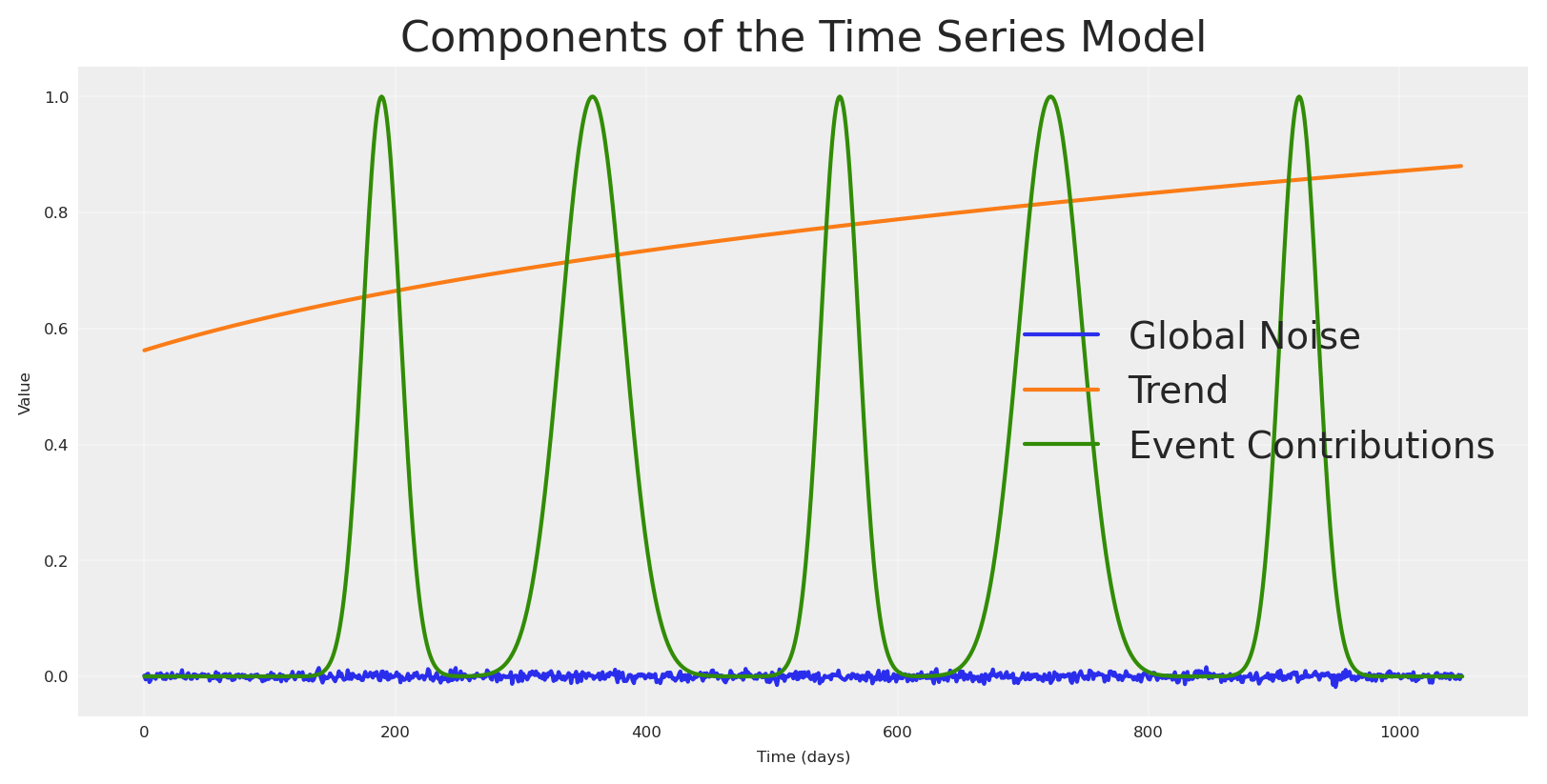

plt.plot(pz_global_noise, label='Global Noise')
plt.plot(np_trend, label='Trend')
plt.plot(np_event_signal, label='Event Contributions')
plt.title('Components of the Time Series Model')
plt.xlabel('Time (days)')
plt.ylabel('Value')
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

In order to make it more interesting, lets add a price variable. Usually, price creates more impact as it’s slower. The product price contribution function we’ll use is a diminishing returns function:

\[f(X, \alpha, \lambda) = \frac{\alpha}{1 + (X / \lambda)}\]

where \(\alpha\) represents the maximum contribution and \(\lambda\) is a scaling parameter that controls how quickly the contribution diminishes as price increases.

def product_price_contribution(X, alpha, lam):
    return alpha / (1 + (X / lam))

# Create a product price vector.
product_price = pt.vector("product_price")
product_price_alpha = pt.scalar("product_price_alpha")
product_price_lam = pt.scalar("product_price_lam")

# Create a sample input for the product price
pz_product_price = np.convolve(
    pz.Gamma(mu=.05, sigma=.02).rvs(size=n_observations, random_state=SEED),
    np.ones(14) / 14, mode="same"
)
pz_product_price[:14] = pz_product_price.mean()
pz_product_price[-14:] = pz_product_price.mean()

product_price_alpha_value = .08
product_price_lam_value = .03

# Direct contribution to the target.
pt_product_price_contribution = product_price_contribution(
    product_price,
    product_price_alpha,
    product_price_lam
)

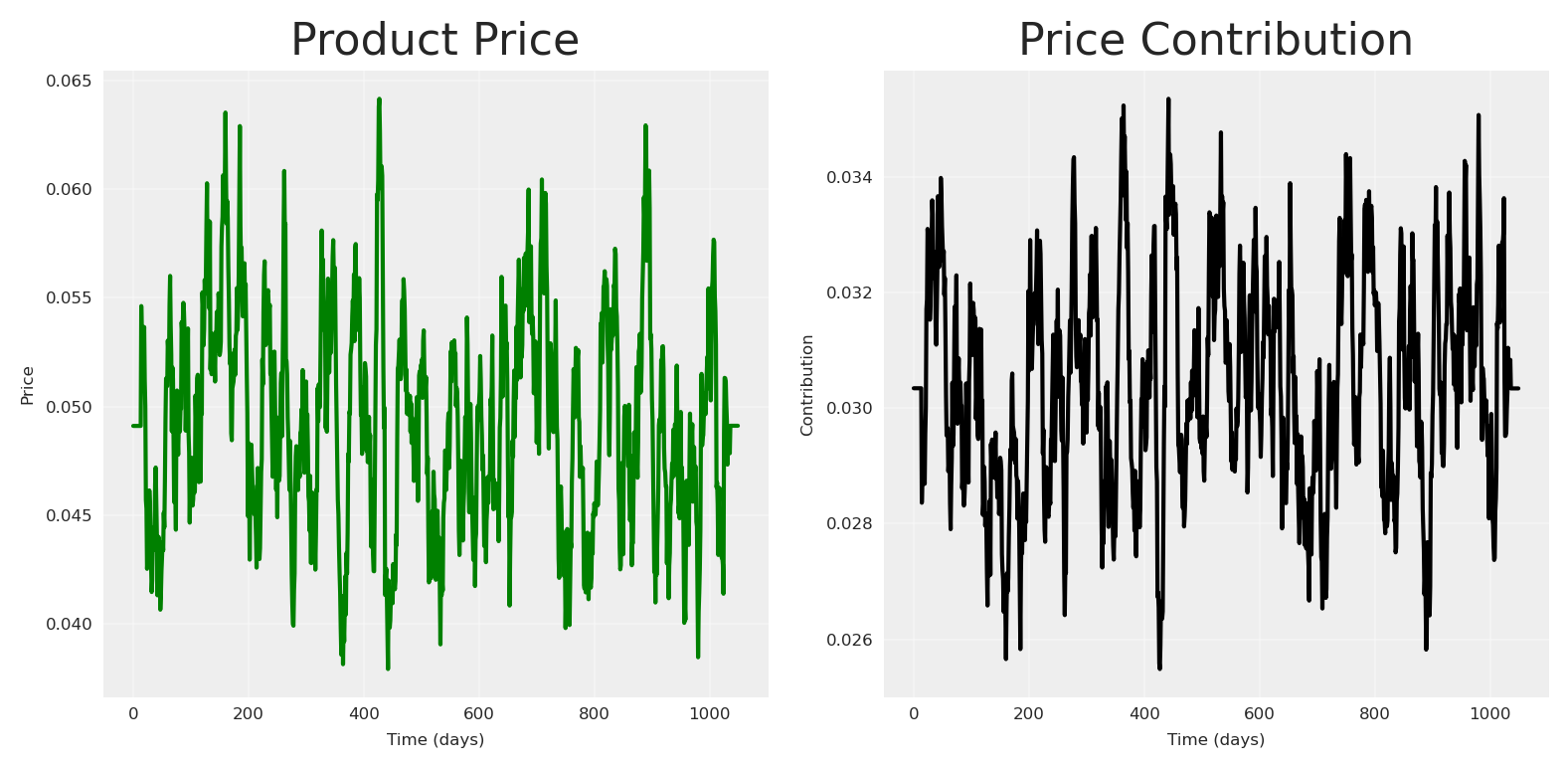

# plot the product price contribution
fig, (ax1, ax2) = plt.subplots(1, 2)

# Plot the raw price data
ax1.plot(pz_product_price, color="green")
ax1.set_title('Product Price')
ax1.set_xlabel('Time (days)')
ax1.set_ylabel('Price')
ax1.grid(True, alpha=0.3)

# Plot the price contribution
price_contribution = pt_product_price_contribution.eval({
    "product_price": pz_product_price,
    "product_price_alpha": product_price_alpha_value,
    "product_price_lam": product_price_lam_value
})
ax2.plot(price_contribution, color="black")
ax2.set_title('Price Contribution')
ax2.set_xlabel('Time (days)')
ax2.set_ylabel('Contribution')
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

With all the principal components in place, all parent nodes we can start to write down our causal DAG to define the relationships we want to explain.

# Plot causal graph of the vars x1, x2, x3, x4 using graphviz
cdag_impressions = graphviz.Digraph(comment='Causal DAG for Impressions')

cdag_impressions.node('spend_x1', 'Spend X1')
cdag_impressions.node('spend_x2', 'Spend X2')
cdag_impressions.node('spend_x3', 'Spend X3')
cdag_impressions.node('spend_x4', 'Spend X4')
cdag_impressions.node('events', 'Events')

cdag_impressions.edge('spend_x1', 'impressions_x1')
cdag_impressions.edge('spend_x2', 'impressions_x2')
cdag_impressions.edge('spend_x3', 'impressions_x3')
cdag_impressions.edge('spend_x4', 'impressions_x4')

cdag_impressions.edge('impressions_x1', 'impressions_x3')
cdag_impressions.edge('impressions_x2', 'impressions_x3')
cdag_impressions.edge('impressions_x2', 'impressions_x4')

cdag_impressions.edge('events', 'impressions_x2')
cdag_impressions.edge('events', 'impressions_x3')

cdag_impressions

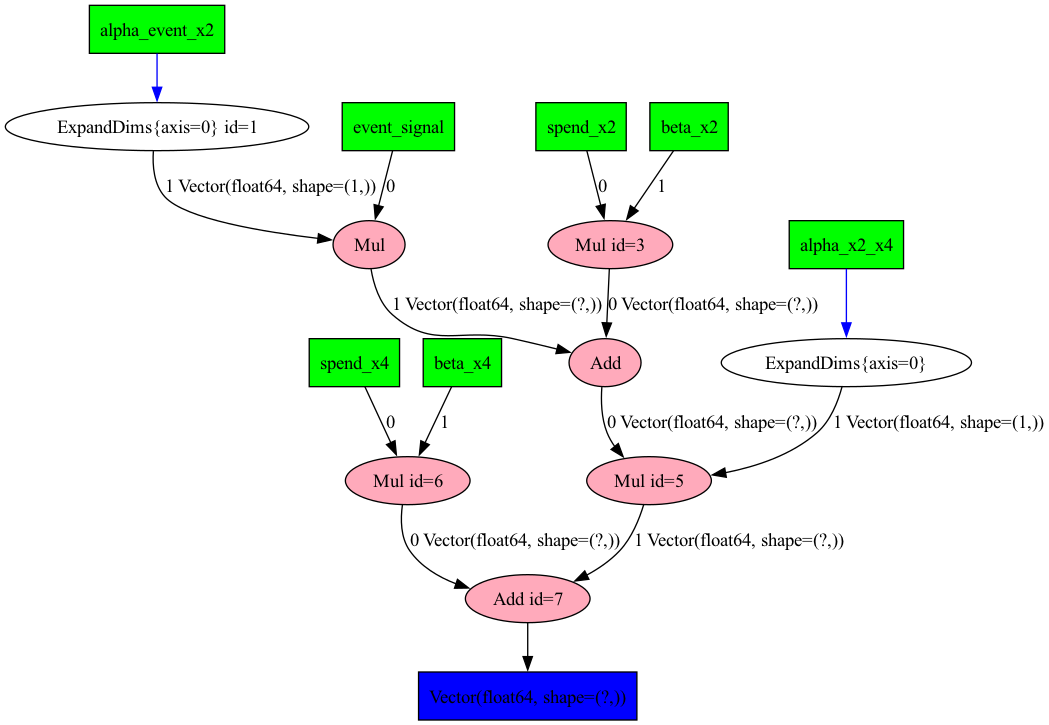

Once our causal graph is defined, we can start to write down in pytensor the structure and relationships.

# Create a impressions vector, result of x1, x2, x3, x4. by some beta with daily values.
# Define all parameters as PyTensor variables
beta_x1 = pt.vector("beta_x1")
impressions_x1 = spend_x1 * beta_x1

beta_x2 = pt.vector("beta_x2")
alpha_event_x2 = pt.scalar("alpha_event_x2")
impressions_x2 = spend_x2 * beta_x2 + pt_event_signal * alpha_event_x2

beta_x3 = pt.vector("beta_x3")
alpha_event_x3 = pt.scalar("alpha_event_x3")
alpha_x1_x3 = pt.scalar("alpha_x1_x3")
alpha_x2_x3 = pt.scalar("alpha_x2_x3")
impressions_x3 = spend_x3 * beta_x3 + pt_event_signal * alpha_event_x3 + (
    impressions_x2 * alpha_x2_x3
    + impressions_x1 * alpha_x1_x3
)

beta_x4 = pt.vector("beta_x4")
alpha_x2_x4 = pt.scalar("alpha_x2_x4")
impressions_x4 = spend_x4 * beta_x4 + impressions_x2 * alpha_x2_x4

# Create sample values for the parameters (to be used in eval)
pz_beta_x1 = pz.Beta(alpha=0.05, beta=.1).rvs(size=n_observations, random_state=SEED)
pz_beta_x2 = pz.Beta(alpha=.015, beta=.05).rvs(size=n_observations, random_state=SEED)
pz_alpha_event_x2 = 0.015
pz_beta_x3 = pz.Beta(alpha=.1, beta=.1).rvs(size=n_observations, random_state=SEED)
pz_alpha_event_x3 = 0.001
pz_alpha_x1_x3 = 0.005
pz_alpha_x2_x3 = 0.12
pz_beta_x4 = pz.Beta(alpha=.125, beta=.05).rvs(size=n_observations, random_state=SEED)
pz_alpha_x2_x4 = 0.01

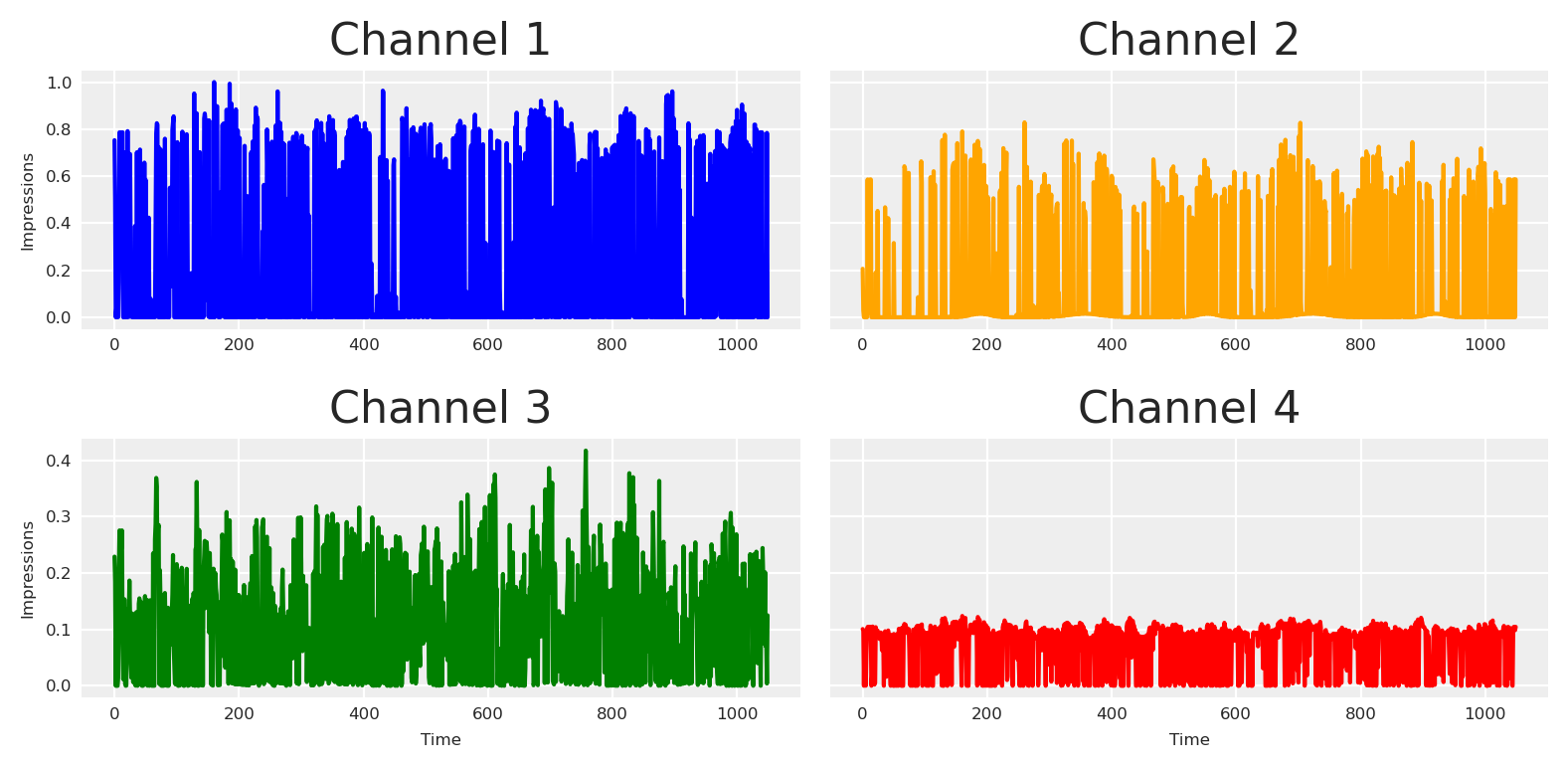

# plot all impressions
# Define dependencies for each variable
x1_deps = {
    "beta_x1": pz_beta_x1,
    "spend_x1": pz_spend_x1,
}

x2_deps = {
    "beta_x2": pz_beta_x2,
    "spend_x2": pz_spend_x2,
    "alpha_event_x2": pz_alpha_event_x2,
    "event_signal": event_signal[:-1],  # Slice to match 1050 length
}

# For x3, we need all dependencies from x1 and x2 plus its own
x3_deps = {
    "beta_x3": pz_beta_x3,
    "spend_x3": pz_spend_x3,
    "alpha_x2_x3": pz_alpha_x2_x3,
    "alpha_event_x3": pz_alpha_event_x3,
    "alpha_x1_x3": pz_alpha_x1_x3,
    **x1_deps,
    **x2_deps,
}

# For x4, we need dependencies from x2 plus its own
x4_deps = {
    "beta_x4": pz_beta_x4,
    "spend_x4": pz_spend_x4,
    "alpha_x2_x4": pz_alpha_x2_x4,
    **x2_deps,
}

# Plot each impression series
fig, axs = plt.subplots(2, 2, sharex='row', sharey='row')

# Channel 1
axs[0, 0].plot(impressions_x1.eval(x1_deps), color='blue')
axs[0, 0].set_title('Channel 1')
axs[0, 0].set_ylabel('Impressions')

# Channel 2
axs[0, 1].plot(impressions_x2.eval(x2_deps), color='orange')
axs[0, 1].set_title('Channel 2')

# Channel 3
axs[1, 0].plot(impressions_x3.eval(x3_deps), color='green')
axs[1, 0].set_title('Channel 3')
axs[1, 0].set_xlabel('Time')
axs[1, 0].set_ylabel('Impressions')

# Channel 4
axs[1, 1].plot(impressions_x4.eval(x4_deps), color='red')
axs[1, 1].set_title('Channel 4')
axs[1, 1].set_xlabel('Time')

plt.tight_layout()
plt.show()

Visualizing the computational graph

In order to check we write down the process properly, we can ask PyTensor to print our structural causal model. This is not necessary for the analysis, but can be helpful for debugging and understanding the model structure.

import pytensor.printing as printing
# Plot the graph of our model using pytensor
printing.pydotprint(rewrite_graph(impressions_x4), outfile="images/impressions.png", var_with_name_simple=True)
# Display the generated graph
from IPython.display import Image
Image(filename="images/impressions.png")

The output file is available at images/impressions.png

If, you don’t like to see the graphical version, you can ask for the string representation.

# dprint the target_var
rewrite_graph(impressions_x4).dprint(depth=5);

Add [id A]
 ├─ Mul [id B]
 │  ├─ spend_x4 [id C]
 │  └─ beta_x4 [id D]
 └─ Mul [id E]
    ├─ Add [id F]
    │  ├─ Mul [id G]
    │  │  ├─ spend_x2 [id H]
    │  │  └─ beta_x2 [id I]
    │  └─ Mul [id J]
    │     ├─ event_signal [id K]
    │     └─ ExpandDims{axis=0} [id L]
    └─ ExpandDims{axis=0} [id M]
       └─ alpha_x2_x4 [id N]

Now, let’s define our forward pass - how media exposure actually impacts our target variable. In marketing, we typically see two key effects: saturation (diminishing returns) and lagging (delayed impact). We’ll model these using the Michaelis-Menten function for saturation and Geometric Adstock for the lagging effects.

# Creating forward pass for impressions
def forward_pass(x, adstock_alpha, saturation_lam, saturation_alpha):
    # return type pytensor.tensor.variable.TensorVariable
    return MichaelisMentenSaturation.function(
        MichaelisMentenSaturation,
        x=GeometricAdstock(
            l_max=24, normalize=False
        ).function(
            x=x, alpha=adstock_alpha,
        ), lam=saturation_lam, alpha=saturation_alpha,
    )

# Applying forward pass to impressions
# Create scalars variables for the parameters x2, x3, x4
pt_saturation_lam_x2 = pt.scalar("saturation_lam_x2")
pt_saturation_alpha_x2 = pt.scalar("saturation_alpha_x2")

pt_saturation_lam_x3 = pt.scalar("saturation_lam_x3")
pt_saturation_alpha_x3 = pt.scalar("saturation_alpha_x3")

pt_saturation_lam_x4 = pt.scalar("saturation_lam_x4")
pt_saturation_alpha_x4 = pt.scalar("saturation_alpha_x4")

pt_global_adstock_effect = pt.scalar("global_adstock_alpha")

# Apply forward pass to impressions
impressions_x2_forward = forward_pass(
    impressions_x2,
    pt_global_adstock_effect,
    pt_saturation_lam_x2,
    pt_saturation_alpha_x2
)

impressions_x3_forward = forward_pass(
    impressions_x3,
    pt_global_adstock_effect,
    pt_saturation_lam_x3,
    pt_saturation_alpha_x3
)

impressions_x4_forward = forward_pass(
    impressions_x4,
    pt_global_adstock_effect,
    pt_saturation_lam_x4,
    pt_saturation_alpha_x4
)

With all of the following in place, we can define the causal DAG for the target variable and the structural equation as the sum of all previous variables.

# Plot graphviz causal dag for the target_var
# Create a Graphviz object
dot = graphviz.Digraph(comment='Causal DAG for Target Variable')

# Add nodes for each variable
dot.node('spend_x1', 'Spend X1')
dot.node('spend_x2', 'Spend X2')
dot.node('spend_x3', 'Spend X3')
dot.node('spend_x4', 'Spend X4')
dot.node('trend', 'Trend')
dot.node('global_noise', 'Global Noise')
dot.node('event_contributions', 'Events')
dot.node('product_price_contribution', 'Product Price Contribution')

dot.edge('spend_x1', 'impressions_x1')
dot.edge('spend_x2', 'impressions_x2')
dot.edge('spend_x3', 'impressions_x3')
dot.edge('spend_x4', 'impressions_x4')

dot.edge('impressions_x1', 'impressions_x3')
dot.edge('impressions_x2', 'impressions_x3')
dot.edge('impressions_x2', 'impressions_x4')
dot.edge('event_contributions', 'impressions_x2')
dot.edge('event_contributions', 'impressions_x3')

dot.edge('trend', 'target_var')
dot.edge('global_noise', 'target_var')
dot.edge('event_contributions', 'target_var')
dot.edge('product_price_contribution', 'target_var')

dot.edge('impressions_x2', 'target_var')
dot.edge('impressions_x3', 'target_var')
dot.edge('impressions_x4', 'target_var')

# Render the graph
dot

\[ \begin{align} \text{Target} &\sim \sum_{i \in \{2,3,4\}} f_i(\text{impressions}_i) + \\ &\text{event\_contributions} + \\ &\text{product\_price\_contribution} + \\ &\text{trend} + \\ &\text{noise} \end{align} \]

Where \(f_i\) represents the forward pass function (adstock and saturation) applied to each channel’s impressions.

target_var = rewrite_graph(
    impressions_x4_forward +
    impressions_x3_forward +
    impressions_x2_forward +
    pt_event_contributions +
    pt_product_price_contribution +
    trend +
    global_noise
)

# Eval target_var and plot
np_target_var = target_var.eval({
    "spend_x4": pz_spend_x4,
    "spend_x3": pz_spend_x3,
    "spend_x2": pz_spend_x2,
    "spend_x1": pz_spend_x1,
    "event_signal": event_signal[:-1],
    "alpha_event_x2": pz_alpha_event_x2,
    "alpha_event_x3": pz_alpha_event_x3,
    "alpha_x1_x3": pz_alpha_x1_x3,
    "alpha_x2_x3": pz_alpha_x2_x3,
    "alpha_x2_x4": pz_alpha_x2_x4,
    "beta_x2": pz_beta_x2,
    "beta_x3": pz_beta_x3,
    "beta_x4": pz_beta_x4,
    "beta_x1": pz_beta_x1,
    "saturation_lam_x2": .5,
    "saturation_alpha_x2": .2,
    "saturation_lam_x3": .7,
    "saturation_alpha_x3": .7,
    "saturation_lam_x4": .2,
    "saturation_alpha_x4": .1,
    "global_adstock_alpha": .2,
    "product_price": pz_product_price,
    "event_contributions": np_event_contributions[:-1],
    "product_price_alpha": product_price_alpha_value,
    "product_price_lam": product_price_lam_value,
    "trend": np_trend,
    "global_noise": pz_global_noise,
})

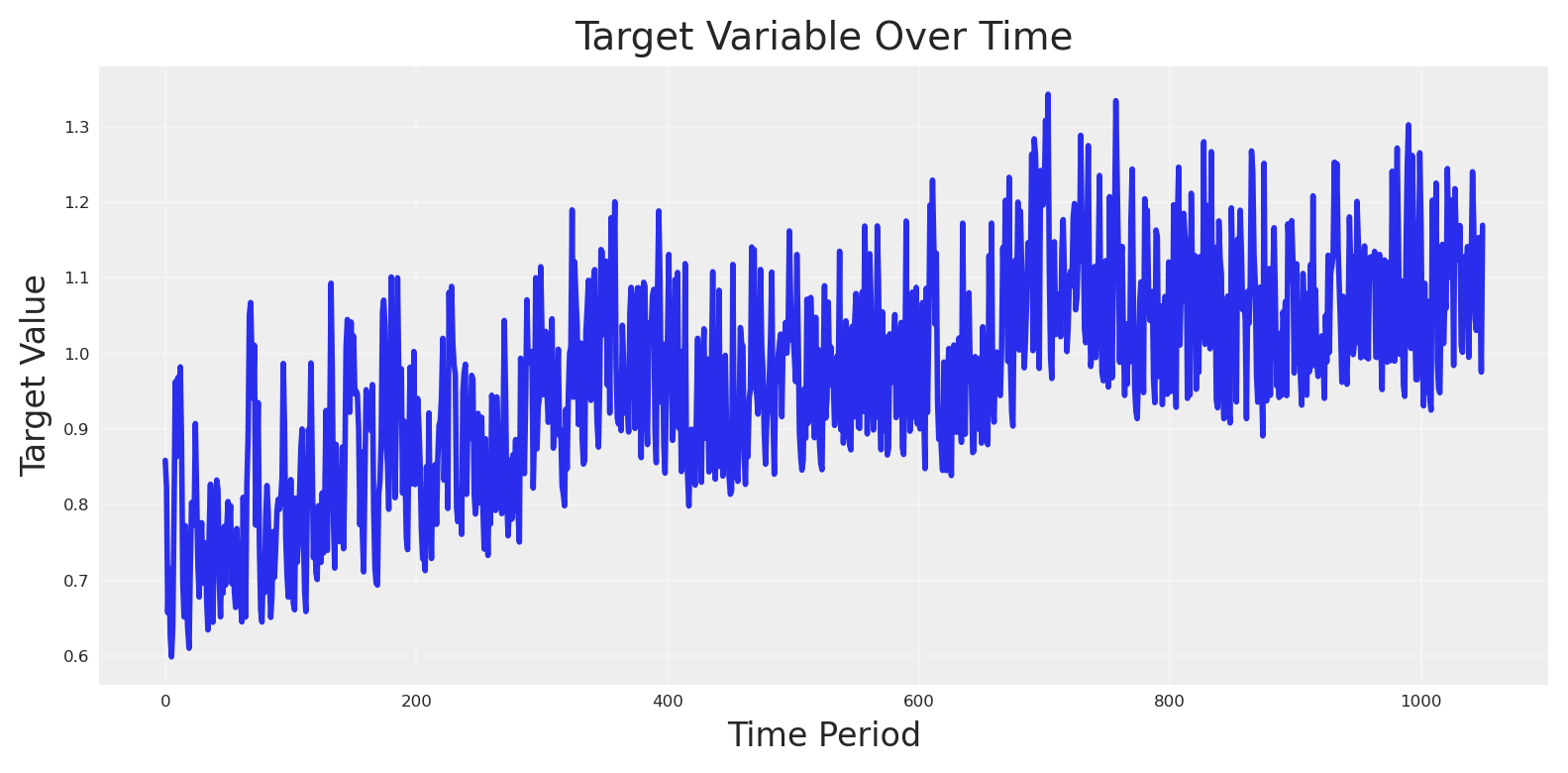

plt.plot(np_target_var, linewidth=2)
plt.title('Target Variable Over Time', fontsize=14)
plt.xlabel('Time Period', fontsize=12)
plt.ylabel('Target Value', fontsize=12)
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

Now, we can imagine our dataframe in this case will be something like the following:

# make dataset with impressions x1, x2, x3, x4 and target_var
scaler_factor_for_all = 150
dates = pd.date_range(start='2020-01-01', periods=n_observations, freq='D')
data = pd.DataFrame({
    "date": dates,
    "target_var": np.round(np_target_var * scaler_factor_for_all, 4),
    "impressions_x1": np.round(impressions_x1.eval(x1_deps) * scaler_factor_for_all, 4),
    "impressions_x2": np.round(impressions_x2.eval(x2_deps) * scaler_factor_for_all, 4),
    "impressions_x3": np.round(impressions_x3.eval(x3_deps) * scaler_factor_for_all, 4),
    "impressions_x4": np.round(impressions_x4.eval(x4_deps) * scaler_factor_for_all, 4),
    "event_2020_09": np.round(signals_independent[0][:-1], 4),
    "event_2020_12": np.round(signals_independent[1][:-1], 4),
    "event_2021_09": np.round(signals_independent[2][:-1], 4),
    "event_2021_12": np.round(signals_independent[3][:-1], 4),
    "event_2022_09": np.round(signals_independent[4][:-1], 4),
})
data["trend"] = data.index
data.head()

	date	target_var	impressions_x1	impressions_x2	impressions_x3	impressions_x4	event_2020_09	event_2020_12	event_2021_09	event_2021_12	event_2022_09	trend
0	2020-01-01	128.7894	112.9178	30.9076	34.3534	15.0851	0.0	0.0	0.0	0.0	0.0	0
1	2020-01-02	123.5265	74.9429	4.3523	27.7279	14.7826	0.0	0.0	0.0	0.0	0.0	1
2	2020-01-03	98.5682	0.0000	0.0000	0.0000	0.0000	0.0	0.0	0.0	0.0	0.0	2
3	2020-01-04	107.3861	5.3253	0.0001	12.7077	13.7833	0.0	0.0	0.0	0.0	0.0	3
4	2020-01-05	93.9367	0.0000	0.0000	0.0001	5.6283	0.0	0.0	0.0	0.0	0.0	4

If we don’t think in a causal way, we will probably just say, “lets add all to the blender”.

# Building priors for adstock and saturation
adstock_priors = {
    "alpha": Prior("Beta", alpha=1, beta=1, dims="channel"),
}

adstock = GeometricAdstock(l_max=28, priors=adstock_priors)

saturation_priors = {
    "lam": Prior(
        "Gamma",
        mu=2,
        sigma=1,
        dims="channel",
    ),
    "alpha": Prior(
        "Gamma",
        mu=.5,
        sigma=.5,
        dims="channel",
    ),
}

saturation = MichaelisMentenSaturation(priors=saturation_priors)

# Split data into train and test sets
train_idx = 879

X_train = data.iloc[:train_idx].drop(columns=["target_var"])
X_test = data.iloc[train_idx:].drop(columns=["target_var"])
y_train = data.iloc[:train_idx]["target_var"]
y_test = data.iloc[train_idx:]["target_var"]

control_columns = [
    "event_2020_09", "event_2020_12",
    "event_2021_09", "event_2021_12",
    "event_2022_09",
    "trend"
]
channel_columns = [
    col for col in X_train.columns if col not in control_columns and col != "date"
]

# Model config
model_config = {
    "likelihood": Prior(
        "TruncatedNormal",
        lower=0,
        sigma=Prior("HalfNormal", sigma=1),
        dims="date",
    ),
}

# sampling options for PyMC
sample_kwargs = {
    "tune": 1000,
    "draws": 500,
    "chains": 4,
    "random_seed": 42,
    "target_accept": 0.94,
    "nuts_sampler": "nutpie",
}

non_causal_mmm = MMM(
    date_column="date",
    channel_columns=channel_columns,
    control_columns=control_columns,
    adstock=adstock,
    saturation=saturation,
    model_config=model_config,
    sampler_config=sample_kwargs
)
non_causal_mmm.build_model(X_train, y_train)

Building the model

All PyMC models are structural causal models, which means they represent the causal generative process of the data. We can visualize this process through a Directed Acyclic Graph (DAG) that shows how variables influence each other in the model.

non_causal_mmm.model.to_graphviz()

Once the model is build, we can train it.

non_causal_mmm.fit(X_train, y_train,)
non_causal_mmm.sample_posterior_predictive(X_train, extend_idata=True, combined=True)

Sampler Progress

Total Chains: 4

Active Chains: 0

Finished Chains: 4

Sampling for 3 minutes

Estimated Time to Completion: now

Progress	Draws	Divergences	Step Size	Gradients/Draw
	1500	0	0.19	31
	1500	0	0.20	31
	1500	0	0.19	15
	1500	0	0.20	15

Sampling: [y]

<xarray.Dataset> Size: 14MB
Dimensions:  (sample: 2000, date: 879)
Coordinates:
  * date     (date) datetime64[ns] 7kB 2020-01-01 2020-01-02 ... 2022-05-28
  * sample   (sample) object 16kB MultiIndex
  * chain    (sample) int64 16kB 0 0 0 0 0 0 0 0 0 0 0 ... 3 3 3 3 3 3 3 3 3 3 3
  * draw     (sample) int64 16kB 0 1 2 3 4 5 6 7 ... 493 494 495 496 497 498 499
Data variables:
    y        (date, sample) float64 14MB 105.2 122.8 130.1 ... 184.2 141.2 156.4
Attributes:
    created_at:                 2025-05-02T15:34:16.505953+00:00
    arviz_version:              0.21.0
    inference_library:          pymc
    inference_library_version:  5.22.0

xarray.Dataset

• Dimensions:
  • sample: 2000
  • date: 879
• Coordinates: (4)
  • date
    (date)
    datetime64[ns]
    2020-01-01 ... 2022-05-28

    array(['2020-01-01T00:00:00.000000000', '2020-01-02T00:00:00.000000000',
           '2020-01-03T00:00:00.000000000', ..., '2022-05-26T00:00:00.000000000',
           '2022-05-27T00:00:00.000000000', '2022-05-28T00:00:00.000000000'],
          dtype='datetime64[ns]')

  • sample
    (sample)
    object
    MultiIndex

    array([(0, 0), (0, 1), (0, 2), ..., (3, 497), (3, 498), (3, 499)], dtype=object)

  • chain
    (sample)
    int64
    0 0 0 0 0 0 0 0 ... 3 3 3 3 3 3 3 3

    array([0, 0, 0, ..., 3, 3, 3])

  • draw
    (sample)
    int64
    0 1 2 3 4 5 ... 495 496 497 498 499

    array([  0,   1,   2, ..., 497, 498, 499])

• Data variables: (1)
  • y
    (date, sample)
    float64
    105.2 122.8 130.1 ... 141.2 156.4

    array([[105.173863  , 122.832198  , 130.1332468 , ...,  97.68546396,
            103.1931372 , 132.06080906],
           [139.75183633, 110.00405668, 123.74512725, ..., 112.27558234,
            100.83853836, 129.49942139],
           [117.16800553, 114.8517604 , 123.55173912, ..., 108.16093547,
            125.61508509, 108.58169908],
           ...,
           [148.32749753, 166.68492108, 151.28932416, ..., 145.28308373,
            136.10789514, 153.36143302],
           [138.91159984, 146.45435329, 164.81888299, ..., 161.09021777,
            180.21235638, 171.33614694],
           [157.52687229, 161.52841998, 141.56003504, ..., 184.22320659,
            141.15698985, 156.398322  ]])

• Indexes: (2)
  • date
    PandasIndex

    PandasIndex(DatetimeIndex(['2020-01-01', '2020-01-02', '2020-01-03', '2020-01-04',
                   '2020-01-05', '2020-01-06', '2020-01-07', '2020-01-08',
                   '2020-01-09', '2020-01-10',
                   ...
                   '2022-05-19', '2022-05-20', '2022-05-21', '2022-05-22',
                   '2022-05-23', '2022-05-24', '2022-05-25', '2022-05-26',
                   '2022-05-27', '2022-05-28'],
                  dtype='datetime64[ns]', name='date', length=879, freq=None))

  • sample
    chain
    draw
    PandasMultiIndex

    PandasIndex(MultiIndex([(0,   0),
                (0,   1),
                (0,   2),
                (0,   3),
                (0,   4),
                (0,   5),
                (0,   6),
                (0,   7),
                (0,   8),
                (0,   9),
                ...
                (3, 490),
                (3, 491),
                (3, 492),
                (3, 493),
                (3, 494),
                (3, 495),
                (3, 496),
                (3, 497),
                (3, 498),
                (3, 499)],
               name='sample', length=2000))

• Attributes: (4)

  created_at :

  2025-05-02T15:34:16.505953+00:00

  arviz_version :

  0.21.0

  inference_library :

  pymc

  inference_library_version :

  5.22.0

We are happy with our model, we don’t get any divergencies, and the sampling looks good.

# Number of diverging samples
print(
    f"Total divergencies: {non_causal_mmm.idata['sample_stats']['diverging'].sum().item()}"
)

az.summary(
    data=non_causal_mmm.fit_result,
    var_names=[
        "intercept",
        "y_sigma",
        "saturation_alpha",
        "saturation_lam",
        "adstock_alpha",
    ],
)

Total divergencies: 0

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
intercept	0.569	0.006	0.558	0.581	0.000	0.000	1246.0	1153.0	1.00
y_sigma	0.072	0.002	0.069	0.076	0.000	0.000	2519.0	1281.0	1.00
saturation_alpha[impressions_x1]	0.015	0.017	0.000	0.043	0.000	0.001	1451.0	1143.0	1.00
saturation_alpha[impressions_x2]	0.014	0.015	0.000	0.041	0.000	0.001	1584.0	913.0	1.00
saturation_alpha[impressions_x3]	0.037	0.040	0.000	0.105	0.001	0.002	868.0	819.0	1.01
saturation_alpha[impressions_x4]	0.075	0.054	0.000	0.170	0.002	0.002	615.0	362.0	1.00
saturation_lam[impressions_x1]	2.362	1.083	0.582	4.373	0.021	0.024	2467.0	1331.0	1.00
saturation_lam[impressions_x2]	2.339	1.126	0.391	4.333	0.022	0.028	2251.0	1148.0	1.00
saturation_lam[impressions_x3]	2.346	1.094	0.495	4.276	0.024	0.025	1806.0	1086.0	1.00
saturation_lam[impressions_x4]	2.328	1.076	0.623	4.379	0.026	0.029	1604.0	1258.0	1.00
adstock_alpha[impressions_x1]	0.501	0.307	0.039	0.988	0.005	0.004	2895.0	1398.0	1.01
adstock_alpha[impressions_x2]	0.518	0.281	0.068	0.993	0.005	0.005	3152.0	1254.0	1.01
adstock_alpha[impressions_x3]	0.668	0.275	0.132	1.000	0.007	0.005	2122.0	1312.0	1.00
adstock_alpha[impressions_x4]	0.506	0.231	0.067	0.898	0.005	0.004	2302.0	1239.0	1.00

If our model has a correct understanding of causality, we can use it to perform a do-calculus to estimate the effect of our channel, using out of sample (sampling from the posterior). Mathematically, we want to compute the causal effect as the difference between two interventions: \[P(Y|do(X=x)) - P(Y|do(X=0))\]

This should allows us to isolate the causal impact of our marketing channels on the outcome variable.

X_test_x2_zero = X_test.copy()
X_test_x2_zero["impressions_x2"].iloc[:100] = 0

y_do_x2_zero = non_causal_mmm.sample_posterior_predictive(
    X_test_x2_zero, extend_idata=False, include_last_observations=True, random_seed=42
)

y_do_x2 = non_causal_mmm.sample_posterior_predictive(
    X_test, extend_idata=False, include_last_observations=True, random_seed=42
)

Sampling: [y]

Sampling: [y]

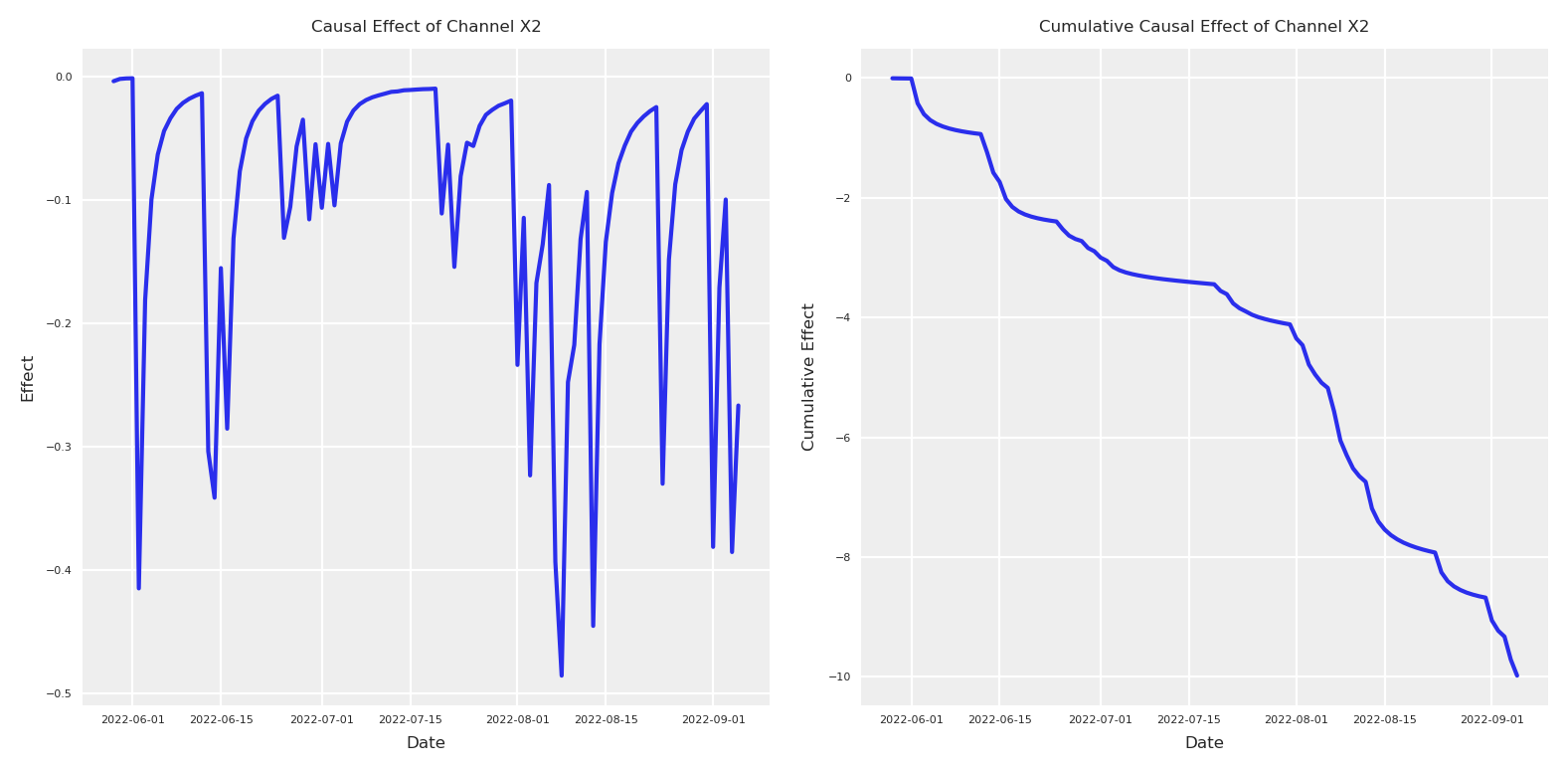

Now that we have both posteriors, we can compute the difference between the period with the index 880-890 and plot the causal effect and the cumulative causal effect.

# Calculate the causal effect as the difference between interventions
x2_causal_effect = (y_do_x2_zero - y_do_x2).y
# Get dates from the coordinates for x-axis
dates = x2_causal_effect.coords['date'].values[:100]  # Take only first 100 days

# Plot the causal effect
plt.subplot(1, 2, 1)
# Calculate mean and quantiles
mean_effect = x2_causal_effect.mean(dim="sample")[:100]
plt.plot(dates, mean_effect)
plt.title("Causal Effect of Channel X2", fontsize=6)
plt.xlabel("Date", fontsize=6)
plt.ylabel("Effect", fontsize=6)
plt.tick_params(axis='both', which='major', labelsize=4)
plt.legend(fontsize=6)

# Plot the cumulative causal effect
plt.subplot(1, 2, 2)
# For cumulative effect, compute quantiles directly from cumulative sums
cum_effect = x2_causal_effect.cumsum(dim="date")
cum_mean = cum_effect.mean(dim="sample")[:100]
plt.plot(dates, cum_mean)
plt.title("Cumulative Causal Effect of Channel X2", fontsize=6)
plt.xlabel("Date", fontsize=6)
plt.ylabel("Cumulative Effect", fontsize=6)
plt.tick_params(axis='both', which='major', labelsize=4)
plt.legend(fontsize=6)
plt.tight_layout()

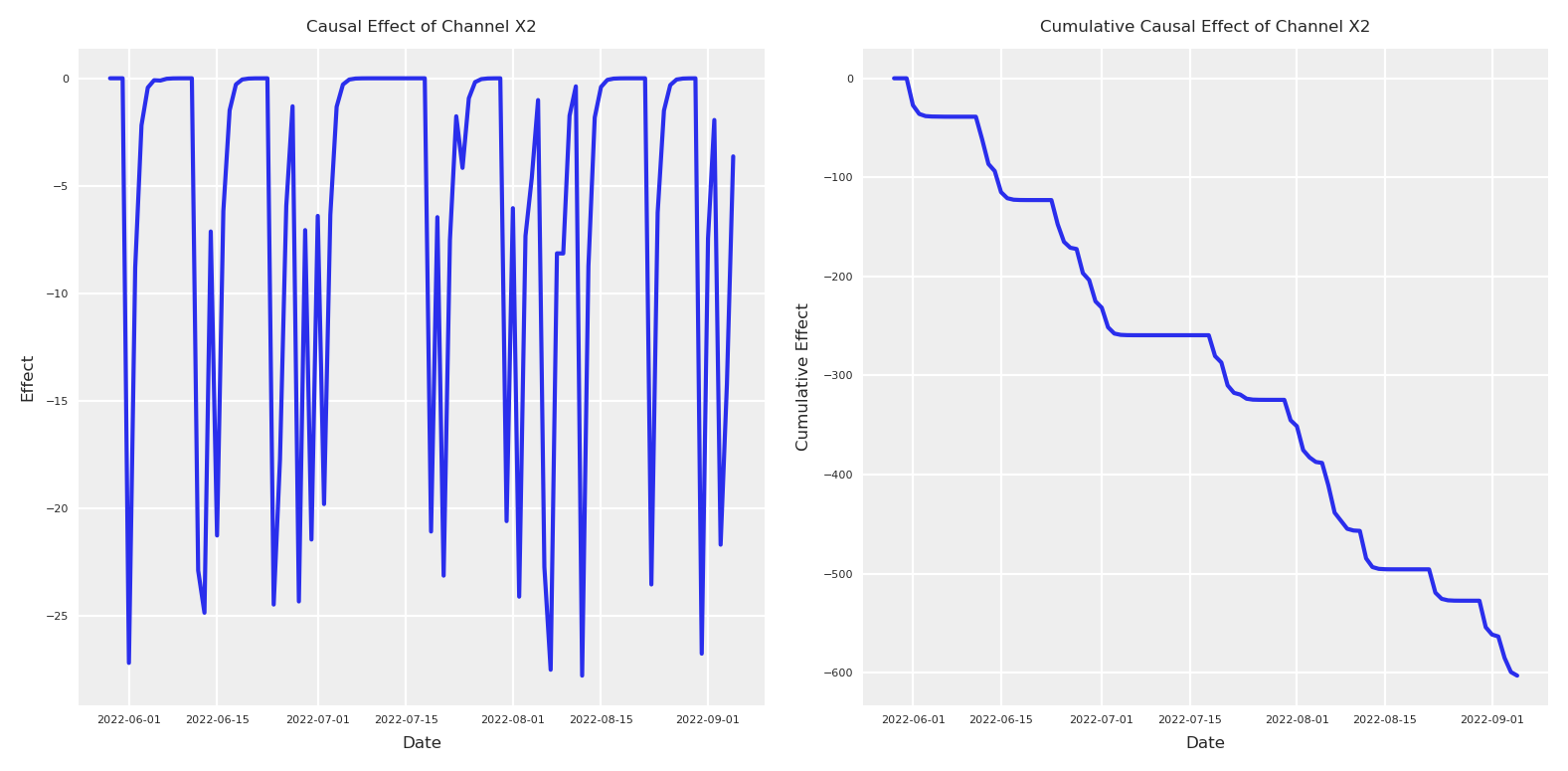

In reality, in order to validate the following estimated effect, we’ll need to run an actual experiment. Because we did the data generation process we can run this actual experiment to compare.

# Create an intervened spend_x2 with zeros between index 880 and 980
intervened_spend_x2 = pz_spend_x2.copy()
intervened_spend_x2[880:980] = 0

# Evaluate target variable with the intervention
np_target_var_x2_zero = target_var.eval({
    "spend_x4": pz_spend_x4,
    "spend_x3": pz_spend_x3,
    "spend_x2": intervened_spend_x2,
    "spend_x1": pz_spend_x1,
    "event_signal": event_signal[:-1],
    "alpha_event_x2": pz_alpha_event_x2,
    "alpha_event_x3": pz_alpha_event_x3,
    "alpha_x1_x3": pz_alpha_x1_x3,
    "alpha_x2_x3": pz_alpha_x2_x3,
    "alpha_x2_x4": pz_alpha_x2_x4,
    "beta_x2": pz_beta_x2,
    "beta_x3": pz_beta_x3,
    "beta_x4": pz_beta_x4,
    "beta_x1": pz_beta_x1,
    "saturation_lam_x2": .5,
    "saturation_alpha_x2": .2,
    "saturation_lam_x3": .7,
    "saturation_alpha_x3": .7,
    "saturation_lam_x4": .2,
    "saturation_alpha_x4": .1,
    "global_adstock_alpha": .2,
    "product_price": pz_product_price,
    "event_contributions": np_event_contributions[:-1],
    "product_price_alpha": product_price_alpha_value,
    "product_price_lam": product_price_lam_value,
    "trend": np_trend,
    "global_noise": pz_global_noise,
})

# x2 total effect y | do(x2=>1) - y | do(x2=0)
x2_intervention_real_effect = np_target_var_x2_zero - np_target_var
x2_intervention_real_cumulative_effect = np.cumsum(x2_intervention_real_effect)

# Plot both the intervention effect and cumulative effect
plt.subplot(1, 2, 1)
# Plot the daily effect
daily_effect = x2_intervention_real_effect[880:980] * scaler_factor_for_all
plt.plot(dates, daily_effect)
plt.title("Causal Effect of Channel X2", fontsize=6)
plt.xlabel("Date", fontsize=6)
plt.ylabel("Effect", fontsize=6)
plt.tick_params(axis='both', which='major', labelsize=4)
plt.legend(fontsize=6)

# Plot the cumulative causal effect
plt.subplot(1, 2, 2)
cumulative_effect = x2_intervention_real_cumulative_effect[880:980] * scaler_factor_for_all
plt.plot(dates, cumulative_effect)
plt.title("Cumulative Causal Effect of Channel X2", fontsize=6)
plt.xlabel("Date", fontsize=6)
plt.ylabel("Cumulative Effect", fontsize=6)
plt.tick_params(axis='both', which='major', labelsize=4)
plt.legend(fontsize=6)
plt.tight_layout()
plt.show()

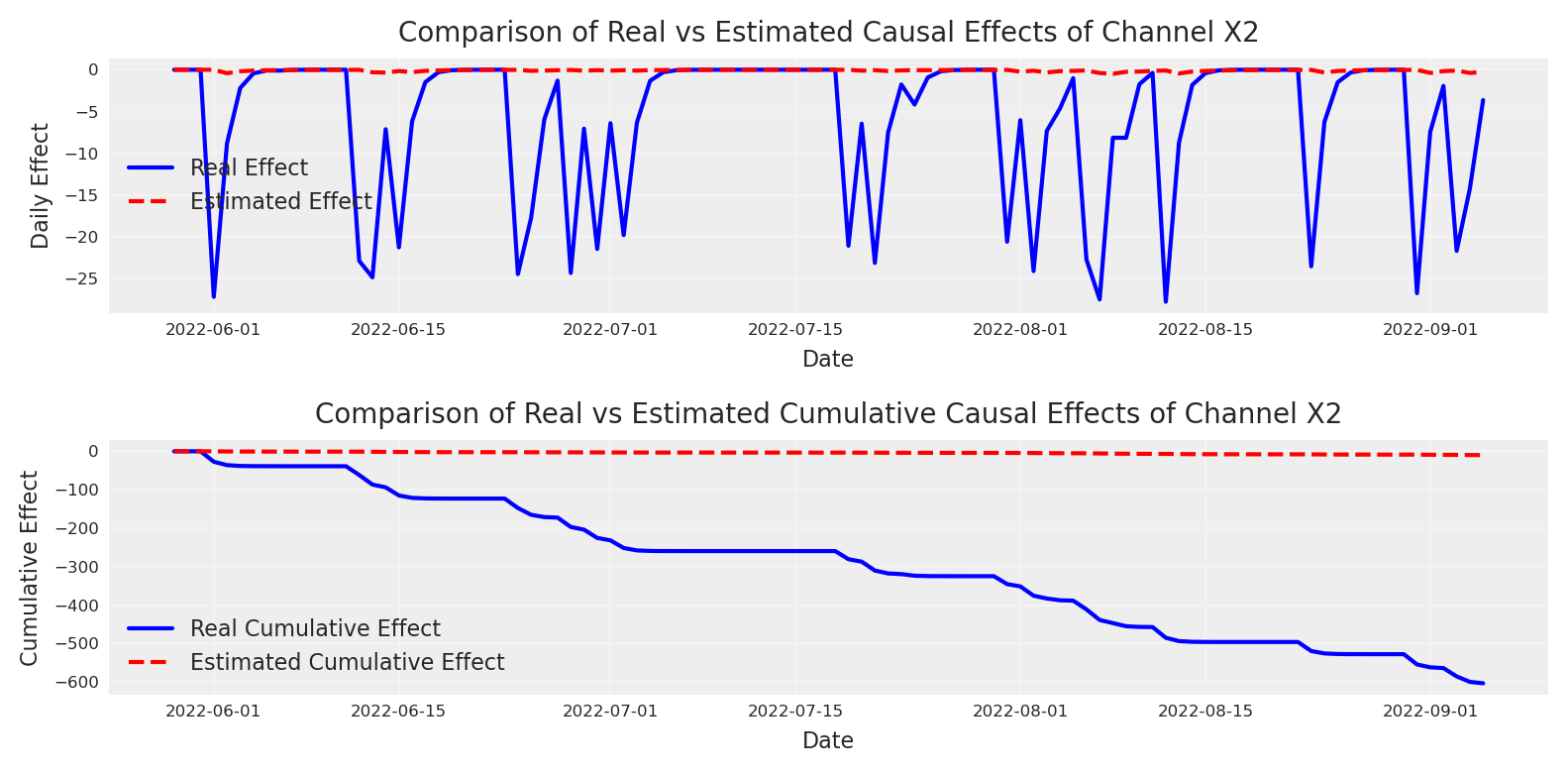

How does compare to the recovered effect? Let’s observe! 👀

# Create a figure to compare real effects with estimated effects
# Plot 1: Compare daily effects
plt.subplot(2, 1, 1)
plt.plot(dates, daily_effect, label='Real Effect', color='blue')
plt.plot(dates, mean_effect, label='Estimated Effect', color='red', linestyle='--')
plt.title("Comparison of Real vs Estimated Causal Effects of Channel X2", fontsize=10)
plt.xlabel("Date", fontsize=8)
plt.ylabel("Daily Effect", fontsize=8)
plt.tick_params(axis='both', which='major', labelsize=6)
plt.legend(fontsize=8)
plt.grid(True, alpha=0.3)

# Plot 2: Compare cumulative effects
plt.subplot(2, 1, 2)
plt.plot(dates, cumulative_effect, label='Real Cumulative Effect', color='blue')
plt.plot(dates, cum_mean,
         label='Estimated Cumulative Effect', color='red', linestyle='--')
plt.title("Comparison of Real vs Estimated Cumulative Causal Effects of Channel X2", fontsize=10)
plt.xlabel("Date", fontsize=8)
plt.ylabel("Cumulative Effect", fontsize=8)
plt.tick_params(axis='both', which='major', labelsize=6)
plt.legend(fontsize=8)
plt.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

The initial model have been under estimating the effect of \(X2\). We can see the model was thinking we’ll loosing almost none users when in reality wi’ll loose around 600 in total. Maybe we did something wrong? Are we maybe the wrong causal question?

That doesn’t matter, we have calibration! 🤪

Lets compute the observable delta in Y and observable delta in X and use it for calibration.

intervened_channel = "impressions_x2"
total_observed_effect = cumulative_effect[-1] # delta Y
total_previous_imp_before_intervention = X_train[intervened_channel].iloc[-100:].sum()
total_change_imp_during_intervention = -X_train[intervened_channel].iloc[-100:].sum()
sigma = 0.3 # confidence in the experiment.

df_lift_test = pd.DataFrame(
    [{
        "channel": intervened_channel,
        "x": total_previous_imp_before_intervention,
        "delta_x": total_change_imp_during_intervention,
        "delta_y": total_observed_effect,
        "sigma": sigma,
    }]
)

intervened_data = data.copy()
intervened_data.loc[880:980, "impressions_x2"] = 0

non_causal_mmm2 = MMM(
    date_column="date",
    channel_columns=channel_columns,
    control_columns=control_columns,
    adstock=adstock,
    saturation=saturation,
    model_config=model_config,
    sampler_config=sample_kwargs
)
non_causal_mmm2.build_model(
    intervened_data.drop(columns=["target_var"]),
    intervened_data["target_var"]
)

non_causal_mmm2.add_lift_test_measurements(df_lift_test)
non_causal_mmm2.model.to_graphviz()

As we can see a new observational point have been added to our data. This new point must be satisfied as the rest of our data, pooling parameter into a new direction.

Note

In a Bayesian model, each observation—whether it is a daily data point \(y_t\) or a lift measurement \(\Delta y\)—contributes a term to the likelihood. The posterior arises from the product of all these likelihood terms and the prior(s). In other words, theres no actual difference between priors and data, they both carry the same weight and multiply in the numerator of Bayes theorem. There’s no discrete “decision” about which part of the data (or which prior) to weight more; it all goes into the same log‐posterior function. The sampling or optimization algorithm (MCMC, variational inference, etc.) explores the parameter space in proportion to the posterior probability (which is prior × likelihood). Whichever parameters jointly give higher posterior density get visited more often by the sampler.

non_causal_mmm2.fit(
    intervened_data.drop(columns=["target_var"]),
    intervened_data["target_var"],
)
non_causal_mmm2.sample_posterior_predictive(
    intervened_data.drop(columns=["target_var"]),
    extend_idata=True,
    combined=True
)

Sampler Progress

Total Chains: 4

Active Chains: 0

Finished Chains: 4

Sampling for 2 minutes

Estimated Time to Completion: now

Progress	Draws	Divergences	Step Size	Gradients/Draw
	1500	0	0.26	15
	1500	0	0.25	31
	1500	0	0.23	15
	1500	0	0.25	15

Sampling: [lift_measurements, y]

<xarray.Dataset> Size: 17MB
Dimensions:                  (lift_measurements_dim_0: 1, sample: 2000,
                              date: 1050)
Coordinates:
  * lift_measurements_dim_0  (lift_measurements_dim_0) int64 8B 0
  * date                     (date) datetime64[ns] 8kB 2020-01-01 ... 2022-11-15
  * sample                   (sample) object 16kB MultiIndex
  * chain                    (sample) int64 16kB 0 0 0 0 0 0 0 ... 3 3 3 3 3 3 3
  * draw                     (sample) int64 16kB 0 1 2 3 4 ... 496 497 498 499
Data variables:
    lift_measurements        (lift_measurements_dim_0, sample) float64 16kB 0...
    y                        (sample, date) float64 17MB 109.6 121.5 ... 147.5
Attributes:
    created_at:                 2025-05-02T15:37:17.097282+00:00
    arviz_version:              0.21.0
    inference_library:          pymc
    inference_library_version:  5.22.0

xarray.Dataset

• Dimensions:
  • lift_measurements_dim_0: 1
  • sample: 2000
  • date: 1050
• Coordinates: (5)
  • lift_measurements_dim_0
    (lift_measurements_dim_0)
    int64
    0

    array([0])

  • date
    (date)
    datetime64[ns]
    2020-01-01 ... 2022-11-15

    array(['2020-01-01T00:00:00.000000000', '2020-01-02T00:00:00.000000000',
           '2020-01-03T00:00:00.000000000', ..., '2022-11-13T00:00:00.000000000',
           '2022-11-14T00:00:00.000000000', '2022-11-15T00:00:00.000000000'],
          dtype='datetime64[ns]')

  • sample
    (sample)
    object
    MultiIndex

    array([(0, 0), (0, 1), (0, 2), ..., (3, 497), (3, 498), (3, 499)], dtype=object)

  • chain
    (sample)
    int64
    0 0 0 0 0 0 0 0 ... 3 3 3 3 3 3 3 3

    array([0, 0, 0, ..., 3, 3, 3])

  • draw
    (sample)
    int64
    0 1 2 3 4 5 ... 495 496 497 498 499

    array([  0,   1,   2, ..., 497, 498, 499])

• Data variables: (2)
  • lift_measurements
    (lift_measurements_dim_0, sample)
    float64
    0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0

    array([[0., 0., 0., ..., 0., 0., 0.]])

  • y
    (sample, date)
    float64
    109.6 121.5 130.2 ... 170.2 147.5

    array([[109.58280956, 121.48099081, 130.16908852, ..., 175.39310904,
            173.80581605, 172.82523063],
           [ 98.9720433 , 117.18059621, 128.54860672, ..., 181.6759546 ,
            157.37248177, 187.96576056],
           [118.08168711,  99.51947469,  98.22405344, ..., 162.49555084,
            189.00418637, 156.58213849],
           ...,
           [113.31447231, 138.50101263, 105.35604539, ..., 172.50065979,
            164.39980028, 197.34487912],
           [146.34957067, 154.27271843,  86.70845357, ..., 151.3204528 ,
            144.63182373, 193.95704398],
           [123.06662776, 124.72641101, 144.7205475 , ..., 189.73144058,
            170.24103423, 147.47815878]])

• Indexes: (3)
  • lift_measurements_dim_0
    PandasIndex

    PandasIndex(Index([0], dtype='int64', name='lift_measurements_dim_0'))

  • date
    PandasIndex

    PandasIndex(DatetimeIndex(['2020-01-01', '2020-01-02', '2020-01-03', '2020-01-04',
                   '2020-01-05', '2020-01-06', '2020-01-07', '2020-01-08',
                   '2020-01-09', '2020-01-10',
                   ...
                   '2022-11-06', '2022-11-07', '2022-11-08', '2022-11-09',
                   '2022-11-10', '2022-11-11', '2022-11-12', '2022-11-13',
                   '2022-11-14', '2022-11-15'],
                  dtype='datetime64[ns]', name='date', length=1050, freq=None))

  • sample
    chain
    draw
    PandasMultiIndex

    PandasIndex(MultiIndex([(0,   0),
                (0,   1),
                (0,   2),
                (0,   3),
                (0,   4),
                (0,   5),
                (0,   6),
                (0,   7),
                (0,   8),
                (0,   9),
                ...
                (3, 490),
                (3, 491),
                (3, 492),
                (3, 493),
                (3, 494),
                (3, 495),
                (3, 496),
                (3, 497),
                (3, 498),
                (3, 499)],
               name='sample', length=2000))

• Attributes: (4)

  created_at :

  2025-05-02T15:37:17.097282+00:00

  arviz_version :

  0.21.0

  inference_library :

  pymc

  inference_library_version :

  5.22.0

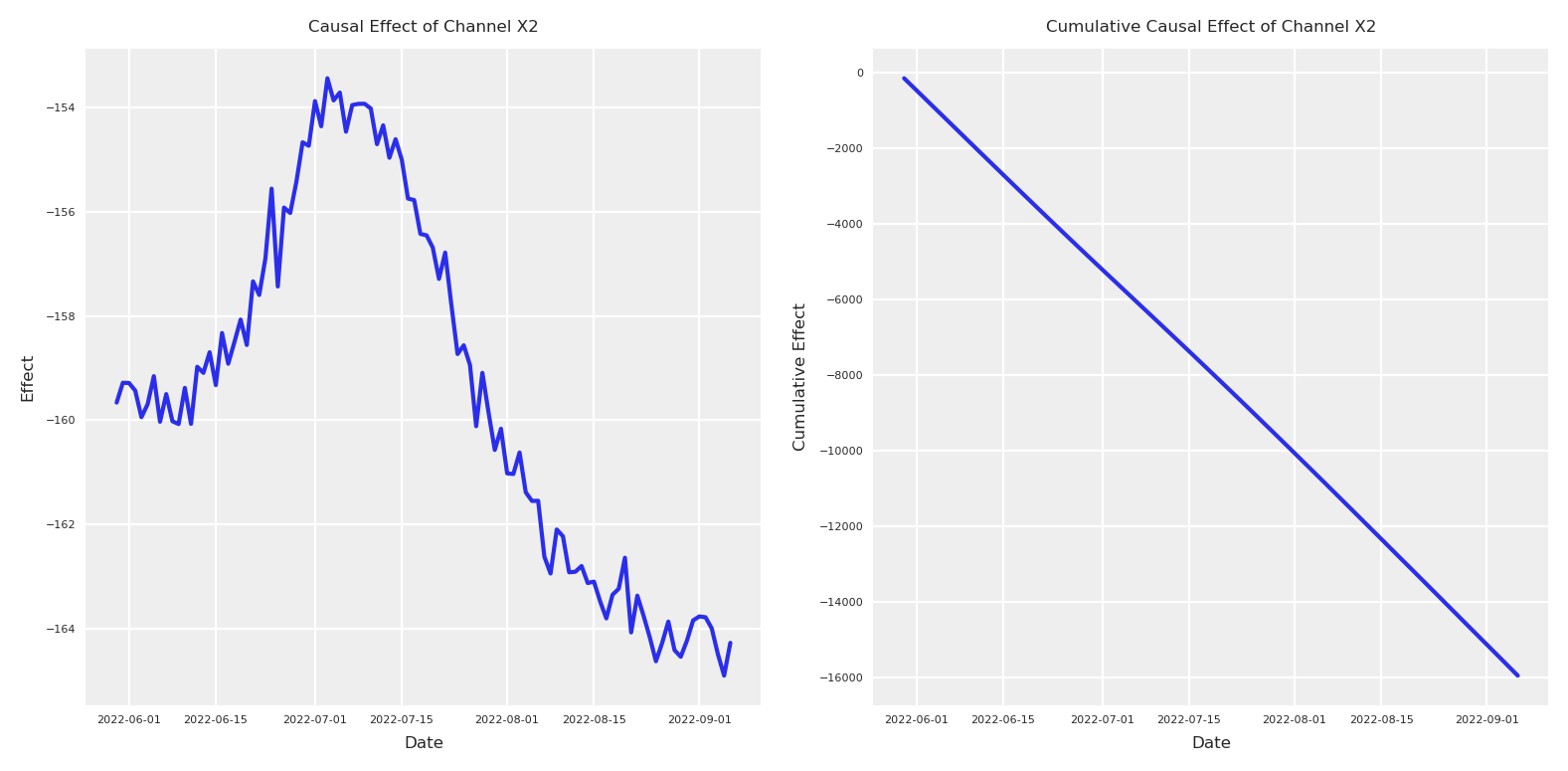

Now that our model is ready, we can check the new estimated effect.

y_do_x2_zero_second_model = non_causal_mmm2.idata.posterior_predictive.copy()
y_do_x2_second_model = non_causal_mmm2.sample_posterior_predictive(
    data.drop(columns=["target_var"]),
    extend_idata=False,
    include_last_observations=False,
    combined=False,
    random_seed=42
)
# Calculate the causal effect as the difference between interventions
x2_causal_effect_second_model = (y_do_x2_zero_second_model.y - y_do_x2_second_model.y).isel(date=slice(880, 980))

# Plot the causal effect
plt.subplot(1, 2, 1)
# Calculate mean and quantiles
mean_effect_second_model = x2_causal_effect_second_model.mean(dim=["chain","draw"])
plt.plot(x2_causal_effect_second_model.coords["date"].values, mean_effect_second_model)
plt.title("Causal Effect of Channel X2", fontsize=6)
plt.xlabel("Date", fontsize=6)
plt.ylabel("Effect", fontsize=6)
plt.tick_params(axis='both', which='major', labelsize=4)
plt.legend(fontsize=6)

# Plot the cumulative causal effect
plt.subplot(1, 2, 2)
# For cumulative effect, compute quantiles directly from cumulative sums
cum_effect_second_model = x2_causal_effect_second_model.cumsum(dim="date")
cum_mean_second_model = cum_effect_second_model.mean(dim=["chain","draw"])
plt.plot(x2_causal_effect_second_model.coords["date"].values, cum_mean_second_model)
plt.title("Cumulative Causal Effect of Channel X2", fontsize=6)
plt.xlabel("Date", fontsize=6)
plt.ylabel("Cumulative Effect", fontsize=6)
plt.tick_params(axis='both', which='major', labelsize=4)
plt.legend(fontsize=6)
plt.tight_layout()

Sampling: [lift_measurements, y]

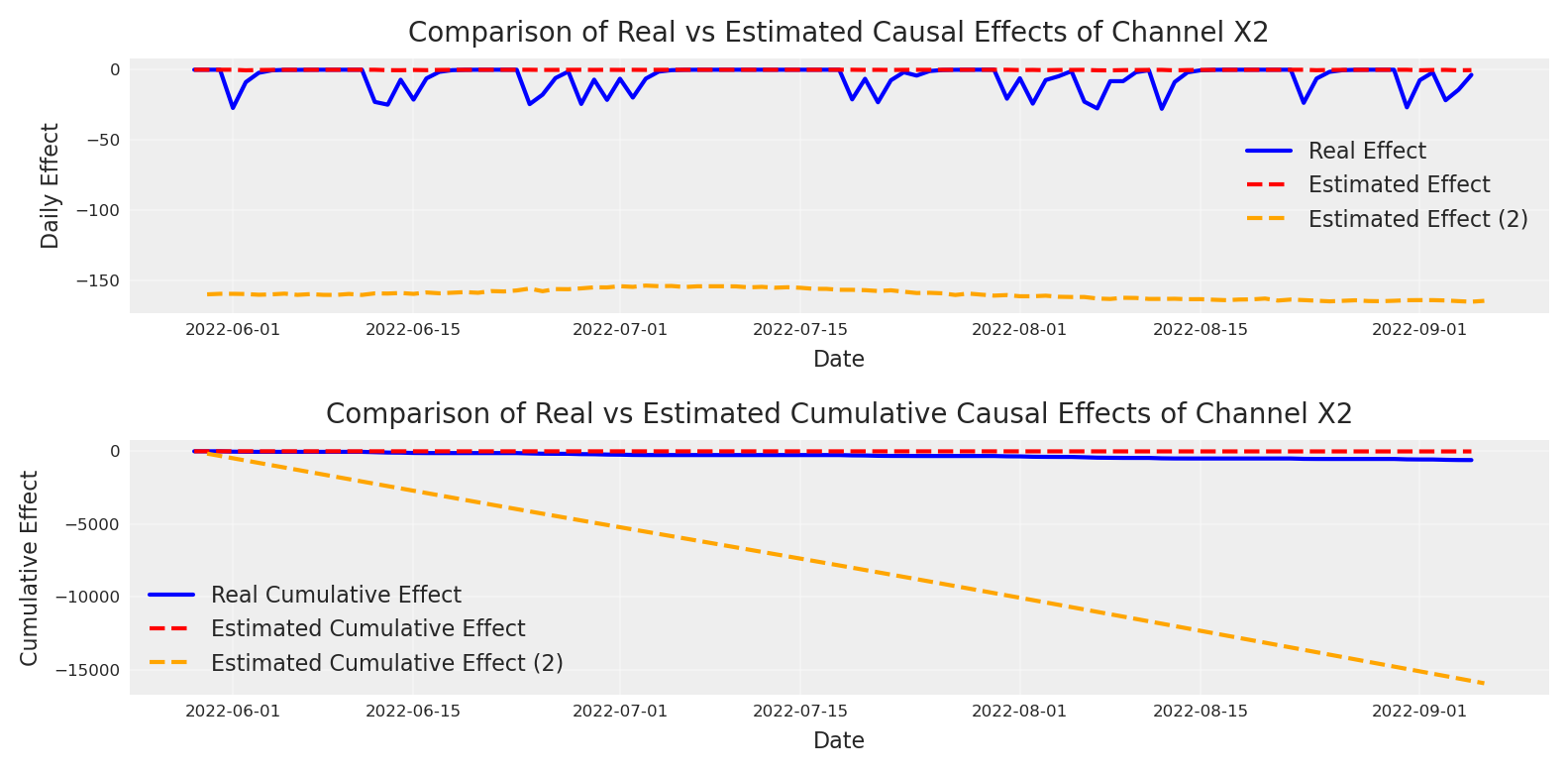

As you can see the effect looks fully different. The size is 1000X higher than before. Let’s compare!

# Create a figure to compare real effects with estimated effects
# Plot 1: Compare daily effects
plt.subplot(2, 1, 1)
plt.plot(dates, daily_effect, label='Real Effect', color='blue')
plt.plot(dates, mean_effect, label='Estimated Effect', color='red', linestyle='--')
plt.plot(x2_causal_effect_second_model.coords["date"].values, mean_effect_second_model, label='Estimated Effect (2)', color='orange', linestyle='--')
plt.title("Comparison of Real vs Estimated Causal Effects of Channel X2", fontsize=10)
plt.xlabel("Date", fontsize=8)
plt.ylabel("Daily Effect", fontsize=8)
plt.tick_params(axis='both', which='major', labelsize=6)
plt.legend(fontsize=8)
plt.grid(True, alpha=0.3)

# Plot 2: Compare cumulative effects
plt.subplot(2, 1, 2)
plt.plot(dates, cumulative_effect, label='Real Cumulative Effect', color='blue')
plt.plot(dates, cum_mean,
         label='Estimated Cumulative Effect', color='red', linestyle='--')
plt.plot(x2_causal_effect_second_model.coords["date"].values, cum_mean_second_model,
         label='Estimated Cumulative Effect (2)', color='orange', linestyle='--')
plt.title("Comparison of Real vs Estimated Cumulative Causal Effects of Channel X2", fontsize=10)
plt.xlabel("Date", fontsize=8)
plt.ylabel("Cumulative Effect", fontsize=8)
plt.tick_params(axis='both', which='major', labelsize=6)
plt.legend(fontsize=8)
plt.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

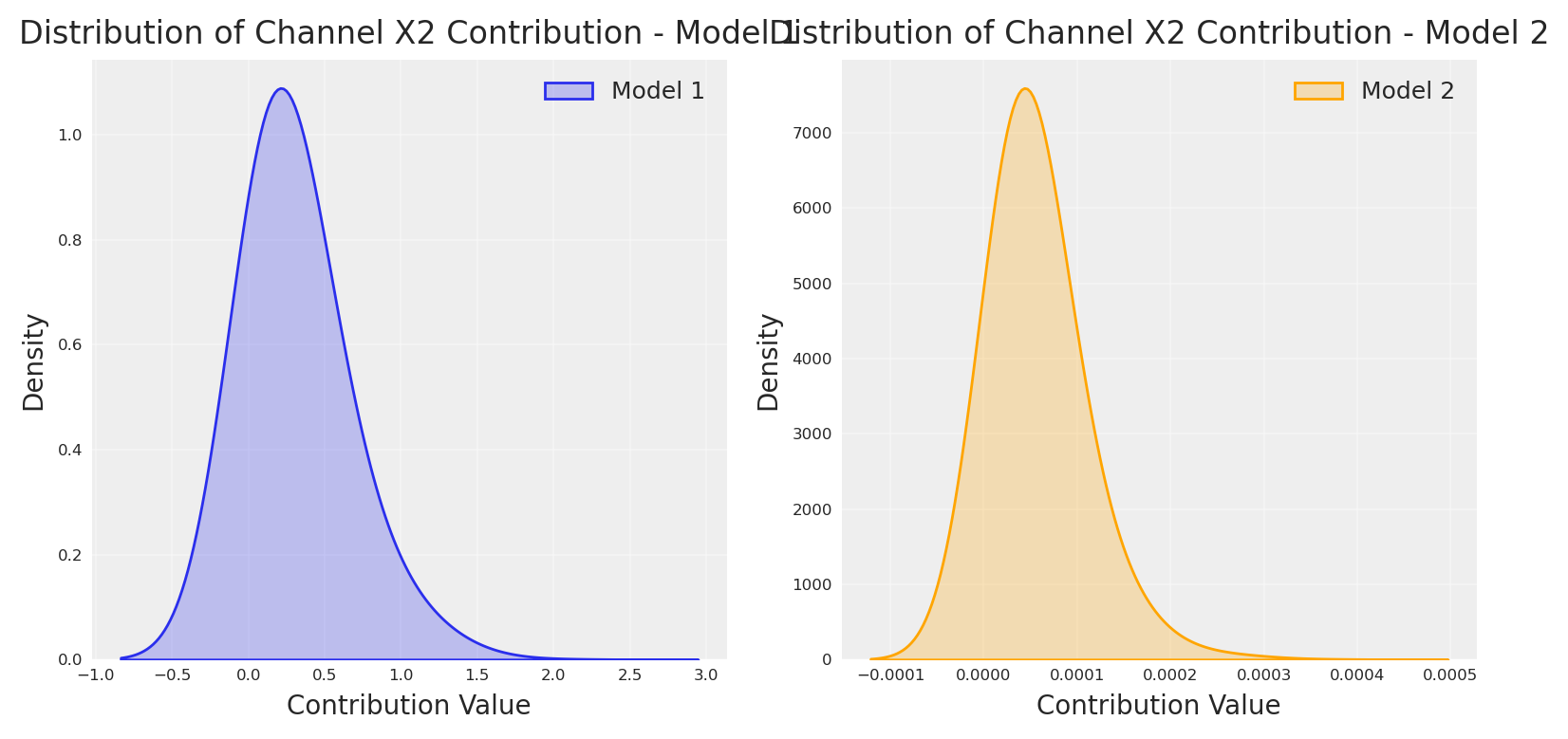

As expected the new observation makes the model add more credit to X2 but this came with the price of an overestimation of the true impact. Meanwhile, it was true that X2 impact was bigger than the original one, the second model absorbe all the variability possibly explain by other variables such as X1, X3 and bring a 1000X more extra impact, with a very tight posterior.

# plot the recovered mean daily contribution as distribution.
channels_contribution_original_scale_model1 = non_causal_mmm.compute_channel_contribution_original_scale()

channels_contribution_original_scale_model2 = non_causal_mmm2.compute_channel_contribution_original_scale()

_dist1 = channels_contribution_original_scale_model1.isel(date=slice(0, 800)).mean(
    dim=["date"]
).sel(channel="impressions_x2").values.flatten()

_dist2 = channels_contribution_original_scale_model2.isel(date=slice(0, 800)).mean(
    dim=["date"]
).sel(channel="impressions_x2").values.flatten()


# First subplot for Model 1
plt.subplot(1, 2, 1)
sns.kdeplot(_dist1, shade=True, label="Model 1", bw_adjust=4.5)
plt.title("Distribution of Channel X2 Contribution - Model 1", fontsize=12)
plt.xlabel("Contribution Value", fontsize=10)
plt.ylabel("Density", fontsize=10)
plt.grid(True, alpha=0.3)
plt.legend(fontsize=9)

# Second subplot for Model 2
plt.subplot(1, 2, 2)
sns.kdeplot(_dist2, shade=True, label="Model 2", bw_adjust=4.5, color="orange")
plt.title("Distribution of Channel X2 Contribution - Model 2", fontsize=12)
plt.xlabel("Contribution Value", fontsize=10)
plt.ylabel("Density", fontsize=10)
plt.grid(True, alpha=0.3)
plt.legend(fontsize=9)

plt.tight_layout()
plt.show()

The Danger of Tight Posteriors

It’s important to note that a tight posterior distribution (like we see in Model 2) should never be understood as the model being more correct or certain about the true causal effect. This is a common misconception in Bayesian analysis.

A tight posterior simply means the model is very confident in its estimates given the data and prior assumptions it has, but says nothing about whether those assumptions are correct. In this case, the addition of the lift test measurement has created a model that is very confident in an incorrect answer.

This illustrates an important principle in causal inference and Bayesian modeling: precision is not the same as accuracy. A model can be precisely wrong - having a narrow posterior around an incorrect value. This often happens when:

1. The model structure doesn’t match the true causal process
2. Important confounders are omitted
3. The priors or likelihood are misspecified

Why all the following happened? lets take a look to the graph.

dot

This DAG shows:

1. Direct Spend-to-Impression Relationships: Each spend variable (X1-X4) directly influences its corresponding impression variable.

2. Cross-Channel Effects:

   • Impressions from X1 influence impressions from X3
   • Impressions from X2 influence both X3 and X4 impressions
   • Events influence impressions for X2 and X3

If we were to build a naive regression model including all variables (X1, X2, X3, X4), we would encounter significant estimation problems, particularly for X2. According to Pearl’s causal theory.

1. Collider Bias

In our graph, X2 influences X3 and X4, which both influence the target variable. This creates a collider structure where conditioning on x1 variable because induces a spurious correlation between X2, X3. This violates the independence assumptions of standard regression.

2. Mediator Effects

X2 has both direct effects on the target variable and indirect effects through X3 and X4. A naive regression would conflate these paths, leading to inconsistent estimates of X2’s true total causal effect.

3. Confounding from Events

Events influence both X2 impressions and the target variable directly. Without properly accounting for this common cause, the estimate for X2 will capture some of the effect that actually comes from events.

All the above means, in order to estimate the effect of X2 we need to address the primal causal questions.

4. Minimal Adjustment Set for X2

To estimate the total causal effect of X2 on the target variable, we need to identify the minimal adjustment set that blocks all non-causal paths while preserving the causal paths. According to Pearl’s backdoor criterion, we must control for any confounders (common causes) while avoiding adjusting for colliders or mediators. In our DAG, the minimal adjustment set for estimating X2’s total effect would include Events (as it’s a confounder affecting both X2 and the target) and Spend X1 (as it influences the target through X3, creating a backdoor path). We should not adjust for impressions_x3 or impressions_x4, as these are mediators through which X2 partially exerts its effect on the target variable. Nevertheless, events are a cofounder of X2, meaning, we need to control for them if we want to get the estimates right on spot.

The proper identification of this minimal adjustment set is crucial for unbiased estimation. If we control for too few variables, confounding bias remains. If we control for mediators, we block part of the causal effect we’re trying to measure. This highlights why structural causal models are superior to naive regression approaches - they allow us to explicitly model the causal pathways and make appropriate adjustments based on causal reasoning rather than statistical correlation. By conditioning only on the minimal adjustment set, we can obtain a consistent estimate of X2’s total causal effect, including both its direct impact and indirect effects through other channels.

So, let’s see what happen if we apply causal theory 😃

# Lets rebuild our media mix model
causal_mmm = MMM(
    date_column="date",
    channel_columns=["impressions_x2"],
    control_columns=control_columns,
    adstock=adstock,
    saturation=saturation,
    model_config=model_config,
    sampler_config=sample_kwargs
)
causal_mmm.fit(X_train, y_train,)
causal_mmm.sample_posterior_predictive(X_train, extend_idata=True, combined=True)

Sampler Progress

Total Chains: 4

Active Chains: 0

Finished Chains: 4

Sampling for a minute

Estimated Time to Completion: now

Progress	Draws	Divergences	Step Size	Gradients/Draw
	1500	0	0.21	15
	1500	0	0.19	31
	1500	0	0.19	15
	1500	0	0.22	15

Sampling: [y]

<xarray.Dataset> Size: 14MB
Dimensions:  (sample: 2000, date: 879)
Coordinates:
  * date     (date) datetime64[ns] 7kB 2020-01-01 2020-01-02 ... 2022-05-28
  * sample   (sample) object 16kB MultiIndex
  * chain    (sample) int64 16kB 0 0 0 0 0 0 0 0 0 0 0 ... 3 3 3 3 3 3 3 3 3 3 3
  * draw     (sample) int64 16kB 0 1 2 3 4 5 6 7 ... 493 494 495 496 497 498 499
Data variables:
    y        (date, sample) float64 14MB 124.1 109.6 110.9 ... 152.1 164.0 143.5
Attributes:
    created_at:                 2025-05-02T15:38:23.991552+00:00
    arviz_version:              0.21.0
    inference_library:          pymc
    inference_library_version:  5.22.0

xarray.Dataset

• Dimensions:
  • sample: 2000
  • date: 879
• Coordinates: (4)
  • date
    (date)
    datetime64[ns]
    2020-01-01 ... 2022-05-28

    array(['2020-01-01T00:00:00.000000000', '2020-01-02T00:00:00.000000000',
           '2020-01-03T00:00:00.000000000', ..., '2022-05-26T00:00:00.000000000',
           '2022-05-27T00:00:00.000000000', '2022-05-28T00:00:00.000000000'],
          dtype='datetime64[ns]')

  • sample
    (sample)
    object
    MultiIndex

    array([(0, 0), (0, 1), (0, 2), ..., (3, 497), (3, 498), (3, 499)], dtype=object)

  • chain
    (sample)
    int64
    0 0 0 0 0 0 0 0 ... 3 3 3 3 3 3 3 3

    array([0, 0, 0, ..., 3, 3, 3])

  • draw
    (sample)
    int64
    0 1 2 3 4 5 ... 495 496 497 498 499

    array([  0,   1,   2, ..., 497, 498, 499])

• Data variables: (1)
  • y
    (date, sample)
    float64
    124.1 109.6 110.9 ... 164.0 143.5

    array([[124.14538356, 109.57021243, 110.92772204, ..., 115.0759991 ,
            116.52150096, 128.18184151],
           [ 97.74866563, 122.81529516, 116.3249324 , ..., 113.29148335,
            112.38463664, 132.29050296],
           [104.16522992, 100.24419099, 124.92090557, ..., 105.53841373,
            104.51735513, 101.75001664],
           ...,
           [161.71854959, 161.41700986, 174.04388634, ..., 159.40121129,
            168.09169898, 166.90584401],
           [150.26737345, 166.78929162, 148.73795997, ..., 158.67760724,
            148.1254166 , 164.44454197],
           [141.95240318, 147.0309534 , 145.90306207, ..., 152.08322891,
            163.9503938 , 143.49270563]])

• Indexes: (2)
  • date
    PandasIndex

    PandasIndex(DatetimeIndex(['2020-01-01', '2020-01-02', '2020-01-03', '2020-01-04',
                   '2020-01-05', '2020-01-06', '2020-01-07', '2020-01-08',
                   '2020-01-09', '2020-01-10',
                   ...
                   '2022-05-19', '2022-05-20', '2022-05-21', '2022-05-22',
                   '2022-05-23', '2022-05-24', '2022-05-25', '2022-05-26',
                   '2022-05-27', '2022-05-28'],
                  dtype='datetime64[ns]', name='date', length=879, freq=None))

  • sample
    chain
    draw
    PandasMultiIndex

    PandasIndex(MultiIndex([(0,   0),
                (0,   1),
                (0,   2),
                (0,   3),
                (0,   4),
                (0,   5),
                (0,   6),
                (0,   7),
                (0,   8),
                (0,   9),
                ...
                (3, 490),
                (3, 491),
                (3, 492),
                (3, 493),
                (3, 494),
                (3, 495),
                (3, 496),
                (3, 497),
                (3, 498),
                (3, 499)],
               name='sample', length=2000))

• Attributes: (4)

  created_at :

  2025-05-02T15:38:23.991552+00:00

  arviz_version :

  0.21.0

  inference_library :

  pymc

  inference_library_version :

  5.22.0

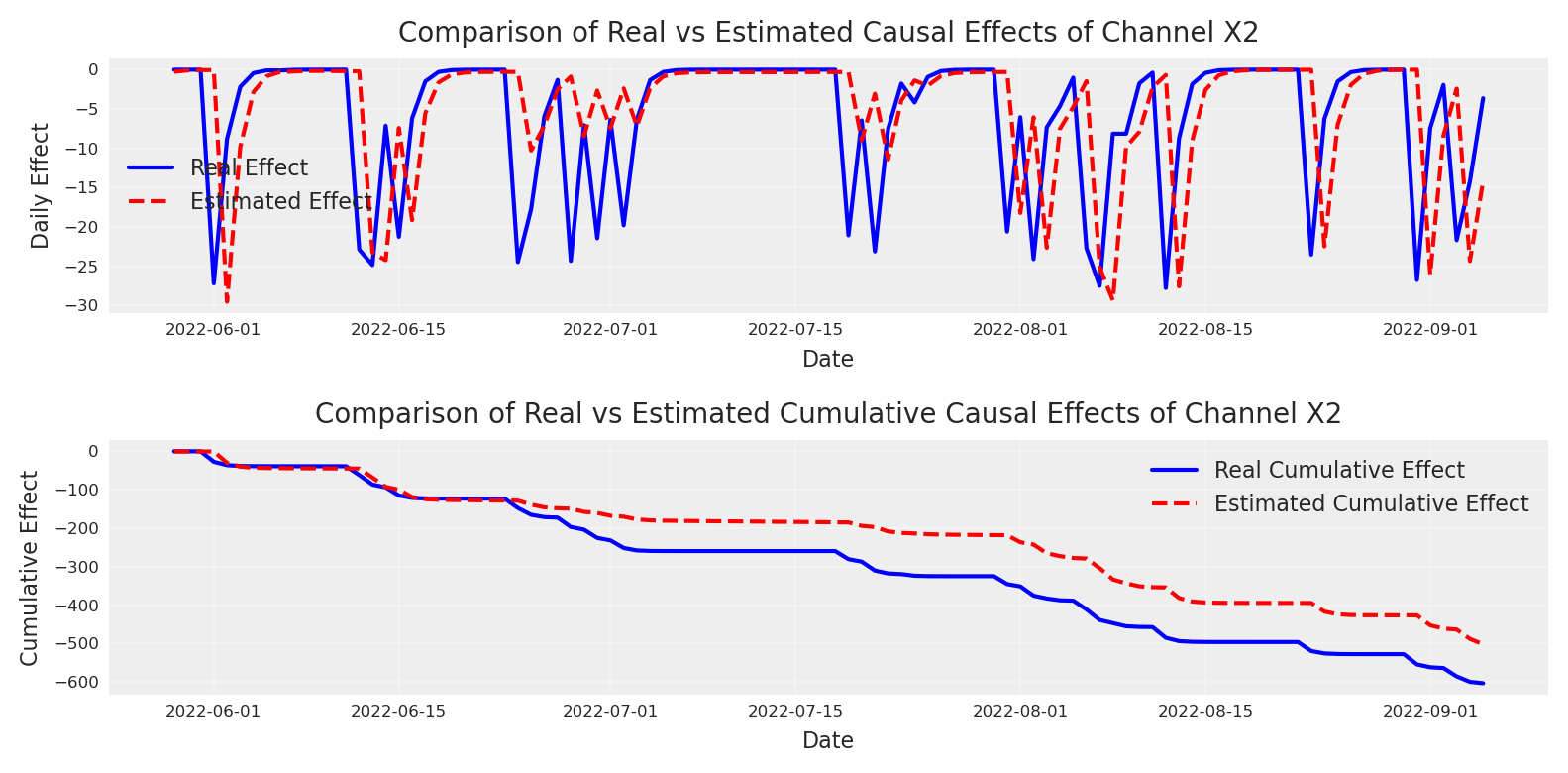

Now, lets repeat again the estimation of the effect when X2 is zero.

X_test_x2_zero = X_test.copy()
X_test_x2_zero["impressions_x2"].iloc[:100] = 0

y_do_x2_zero_causal = causal_mmm.sample_posterior_predictive(
    X_test_x2_zero, extend_idata=False, include_last_observations=True, random_seed=42
)

y_do_x2_causal = causal_mmm.sample_posterior_predictive(
    X_test, extend_idata=False, include_last_observations=True, random_seed=42
)
# Calculate the causal effect as the difference between interventions
x2_causal_effect_causal = (y_do_x2_zero_causal - y_do_x2_causal).y
# Get dates from the coordinates for x-axis
dates = x2_causal_effect_causal.coords['date'].values[:100]  # Take only first 100 days

# Calculate mean and quantiles
mean_effect = x2_causal_effect_causal.mean(dim="sample")[:100]
cum_effect = x2_causal_effect_causal.cumsum(dim="date")
cum_mean = cum_effect.mean(dim="sample")[:100]

# Plot 1: Compare daily effects
plt.subplot(2, 1, 1)
plt.plot(dates, daily_effect, label='Real Effect', color='blue')
plt.plot(dates, mean_effect, label='Estimated Effect', color='red', linestyle='--')
plt.title("Comparison of Real vs Estimated Causal Effects of Channel X2", fontsize=10)
plt.xlabel("Date", fontsize=8)
plt.ylabel("Daily Effect", fontsize=8)
plt.tick_params(axis='both', which='major', labelsize=6)
plt.legend(fontsize=8)
plt.grid(True, alpha=0.3)

# Plot 2: Compare cumulative effects
plt.subplot(2, 1, 2)
plt.plot(dates, cumulative_effect, label='Real Cumulative Effect', color='blue')
plt.plot(dates, cum_mean,
         label='Estimated Cumulative Effect', color='red', linestyle='--')
plt.title("Comparison of Real vs Estimated Cumulative Causal Effects of Channel X2", fontsize=10)
plt.xlabel("Date", fontsize=8)
plt.ylabel("Cumulative Effect", fontsize=8)
plt.tick_params(axis='both', which='major', labelsize=6)
plt.legend(fontsize=8)
plt.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

Sampling: [y]

Sampling: [y]

Great, as expected the true causal effect for X2 was recovered, and its possible to prove with an experiment. This just prove that maths are not magic, and that if we want to create models that explain the dynamics of the world, we need to use causal reasoning to it 🔥🙌🏻

Conclusion

The evidence is clear: calibration cannot rescue a misspecified causal model. We’ve seen that:

• Causal misspecification persists despite calibration. Our Model 2 became confidently wrong after calibration—tight posteriors around incorrect values.
• Colliders and mediators matter. Standard MMMs ignore that marketing channels influence each other, creating spurious correlations that no amount of experimental data can fix.
• Adjustment sets are crucial. Simply including every variable yields biased estimates; we must control only for confounders while preserving causal pathways.

When we finally built a causally-aware MMM—controlling for events as confounders but avoiding adjustment for mediators—our estimates matched the ground truth. The same experimental evidence that couldn’t rescue our misspecified model perfectly aligned with our correctly specified one.

The message: invest in causal discovery before calibration. Draw your DAGs. Identify your minimal adjustment sets. No amount of experimental evidence will save a model asking the wrong causal question.

As Pearl might say: statistics tells us what the data says; causality tells us what to do with it.

Calibration without causation is just computation without comprehension!

%load_ext watermark
%watermark -n -u -v -iv -w -p pymc_marketing,pytensor

Last updated: Fri May 02 2025

Python implementation: CPython
Python version       : 3.11.8
IPython version      : 8.30.0

pymc_marketing: 0.13.0
pytensor      : 2.30.3

arviz         : 0.21.0
pymc          : 5.22.0
graphviz      : 0.20.3
pandas        : 2.2.3
pytensor      : 2.30.3
pymc_marketing: 0.13.0
numpy         : 2.1.3
seaborn       : 0.13.2
matplotlib    : 3.10.1
preliz        : 0.16.0
IPython       : 8.30.0

Watermark: 2.5.0
